Allnet ALL0258
Talk0
1,179pages on
this wiki
this wiki
Your here: Home / Network / Hardware Specific / Allnet / ALL0258
 |
This article is a stub. Please help InfoDepot Wiki by expanding it, adding pictures, and improving existing text.
|
| Allnet ALL0258 | |
|---|---|
 | |
|
Homepage |
? |
|
Wikipedia |
? |
|
dd-wrt |
? |
|
OpenWRT |
? |
|
Tomato |
? |
|
TomatoUSB |
Not Supported |
Contents |
NOTE: DD-WRT Activation Required.
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.
Specs
Edit
This section is in need of cleanup!
Platform

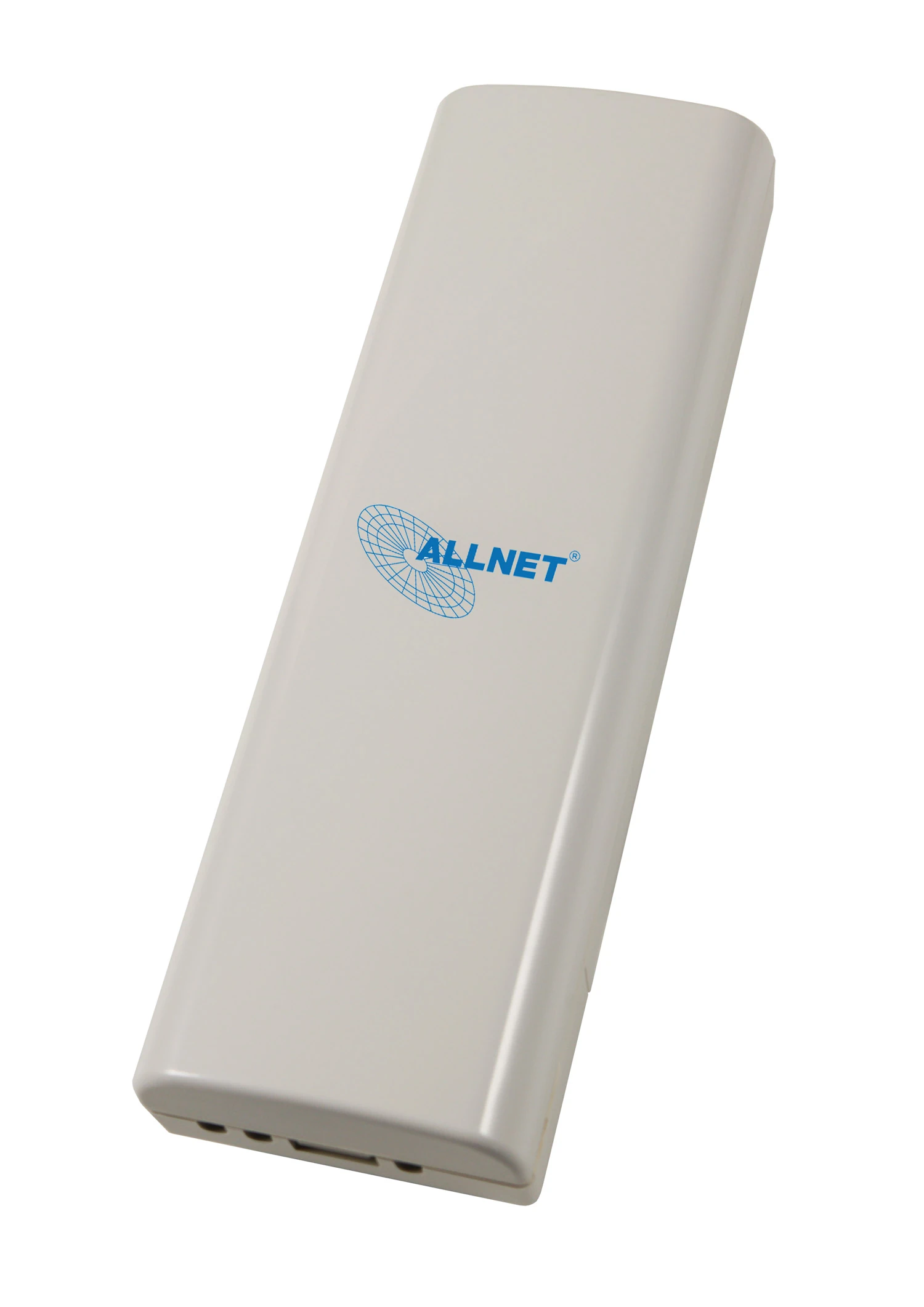

Serial Num. = ? FCC ID = ? CPU Type = Atheros AR2313 MIPS Rev = ? CPU Speed = 180MHz Bus = ? Flash Type = ? Flash Chip = ? Flash Size = 8MB Max Firmware Size = 7995392 bytes RAM Size = 32MB RAM Chip = ? nvram Size = ? Switch = ? Port-based vlan = ? 802.1q vlan = ? Ethernet Port Count = 1-LAN Wired Standard = IEEE 802.3? boot_wait = ? bootloader = redboot Flash Card Socket/Type = ? SD/MMC Mod Support = ? MiniPCI slots = ? PoE = Yes Power = 12V/1A Color of LEDs = ? Size = ? USB = ? Serial Port = Yes JTAG Port = ? Supported by TJTAG/Version = ? Supported by dd-wrt as of = EOC-5610 v.24 SP2 build 11772 dd-wrt K2.4 Support = ? dd-wrt K2.6 Support = ? Special Features = EOC-5610 clone
Radio (ath0)
Wireless Radio = Atheros AR5112
WLAN DSP processor = ?
Antenna Connector Type = Int. 5dBi 2.4GHz + 13dBi 5GHz Panel Antenna
+ 2x External SMA
Wireless Standard = IEEE 802.11a/b/g @28dbm
WiFi Operating Frequency = ?
802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b = 1, 2, 5.5, 11Mbps
802.11a = 6, 9, 12, 18, 24, 36, 48, 54Mbps
Radio cor_rev = ?
Radio Capabilities = ?
Links of InterestEdit
FlashingEdit
DD-WRTEdit
This section is in need of cleanup!
install micro-redboot 1st
UpgradingEdit
This section is in need of cleanup!
RevertingEdit
This section is in need of cleanup!
JTAG/Serial InfoEdit
JTAGEdit
JTAG PinoutsEdit
This section is in need of cleanup!
JTAG RecoveryEdit
This section is in need JTAG Recovery Instructions!
SerialEdit
Serial PinoutsEdit
This section is in need of cleanup!
Hyper terminal Setup in Windows XPEdit
In Windows XP, Click Start Button - All Programs - Accessories -
Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
Bits per second = 115200
Data Bits = 8
Parity = none
Stop bits = 1
Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
don't have to enter the settings again.
Putty Setup in Windows XPEdit
After installing putty, run it Serial line = The COM port your using for serial (ie. COM3) Speed = 115200 Click on Serial under Connection Serial line to connect to = same as above (Serial line) Speed (baud) = 115200 Data bits = 8 Stop bits = 1 Parity = None Flow control = None Click Session Enter a name for your connection under saved sessions Click Save Click Open
