Asus RT-N11
Asus RT-N11a

Homepage

?

Wikipedia

?

dd-wrt

Incompatible

OpenWRT

Not for 2MB Devices

Tomato

Not for 2MB Devices

TomatoUSB

Not for 2MB Devices

NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

SpecsEdit

Fixme This section is in need of cleanup!

Platform

Serial Num. = ?
FCC ID = ?
CPU Type = AMRISC 20010 R3211GCL3A 0813-D-LQ 8US-D3APA.1
MIPS Rev = ?
CPU Speed = ?
Bus = ?
Flash Type = Parallel
Flash Chip = EON 29LV160AB-70TCP H21110A 0802TSC
Flash Size = 2MB
Max Firmware Size = 1769472 bytes
RAM Size = 8MB
RAM Chip = Etrontech EM638165TS-6G
nvram Size = ?
Switch = IC IP175C LF 0811C13 FPU1274.1
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-WAN 4-LAN
Wired Standard = IEEE 802.3?
boot_wait = ?
bootloader = ?
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = 1
PoE = ?
Power = ?
Color of LEDs = ?
Size = ?
USB = No
Serial Port = Yes
JTAG Port = No
Supported by TJTAG/Version = ?
Special Features = ?

Radio

Wireless Radio = RT2760T GW68750E0 0806ST and RT2720L and RT9179A
WLAN DSP processor = ?
Antenna Connector Type = Fixed
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = ?
 802.11n = up to 150Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

Links of InterestEdit

FlashingEdit

Fixme This section is in need of cleanup!

UpgradingEdit

Fixme This section is in need of cleanup!

RevertingEdit

Fixme This section is in need of cleanup!

JTAG/Serial InfoEdit

JTAGEdit

JTAG PinoutsEdit
Fixme This section is in need of cleanup!
JTAG RecoveryEdit
Fixme This section is in need JTAG Recovery Instructions!

SerialEdit

Serial PinoutsEdit
Fixme This section is in need of cleanup!
Hyper terminal Setup in Windows XPEdit
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XPEdit
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial RecoveryEdit
Fixme This section is in need of Serial Recovery Instructions!

vlan InfoEdit

Fixme This section is in need of cleanup!

PicturesEdit

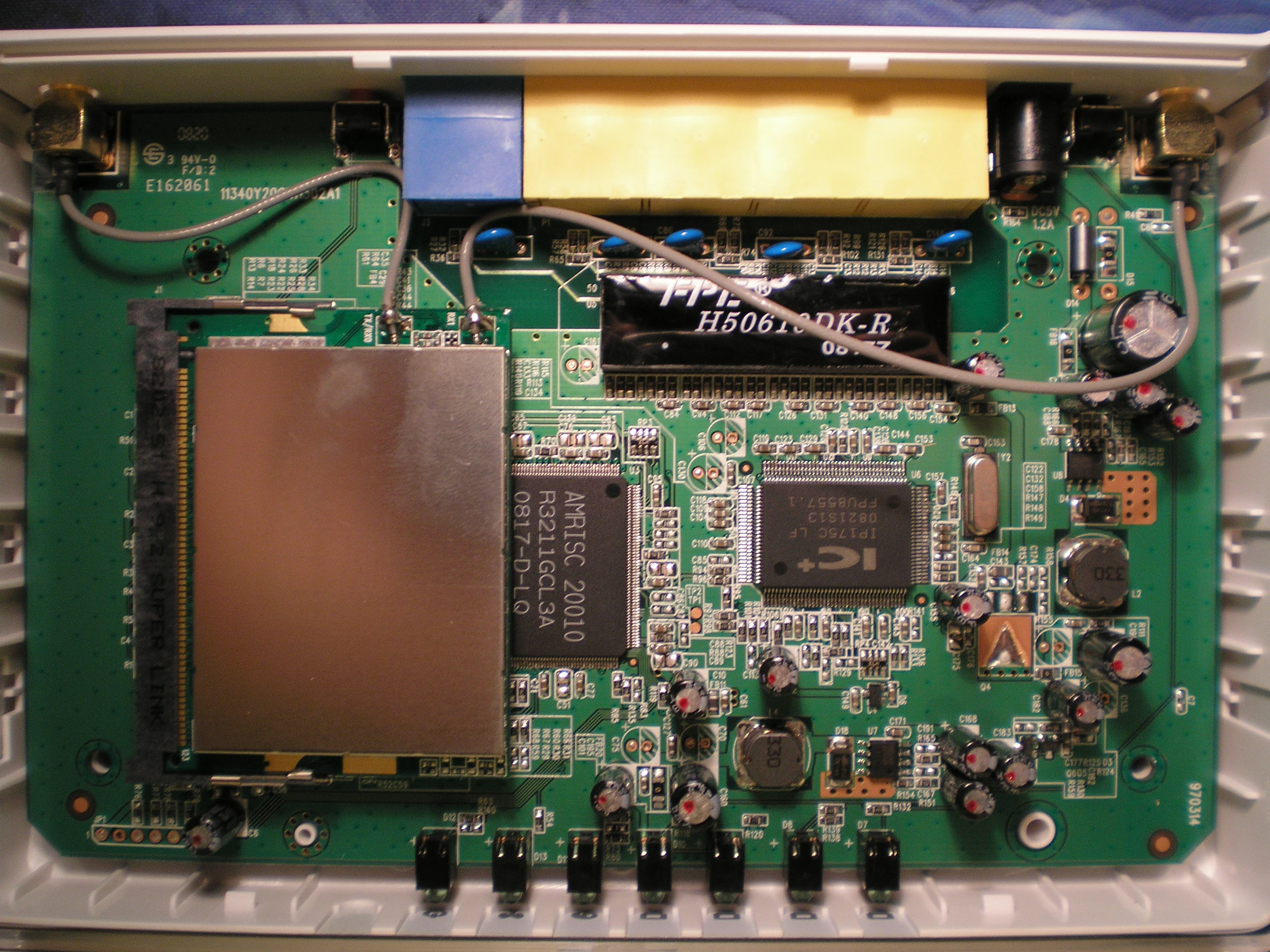

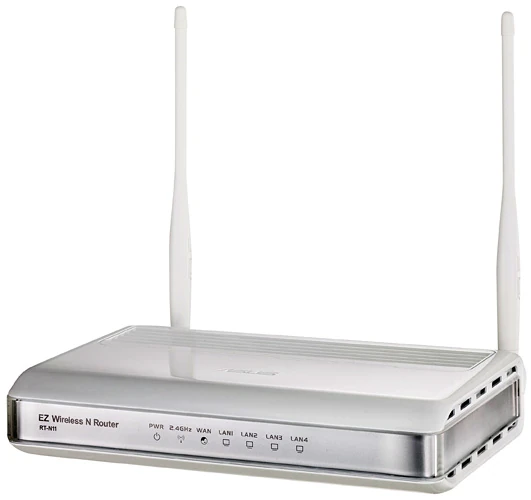

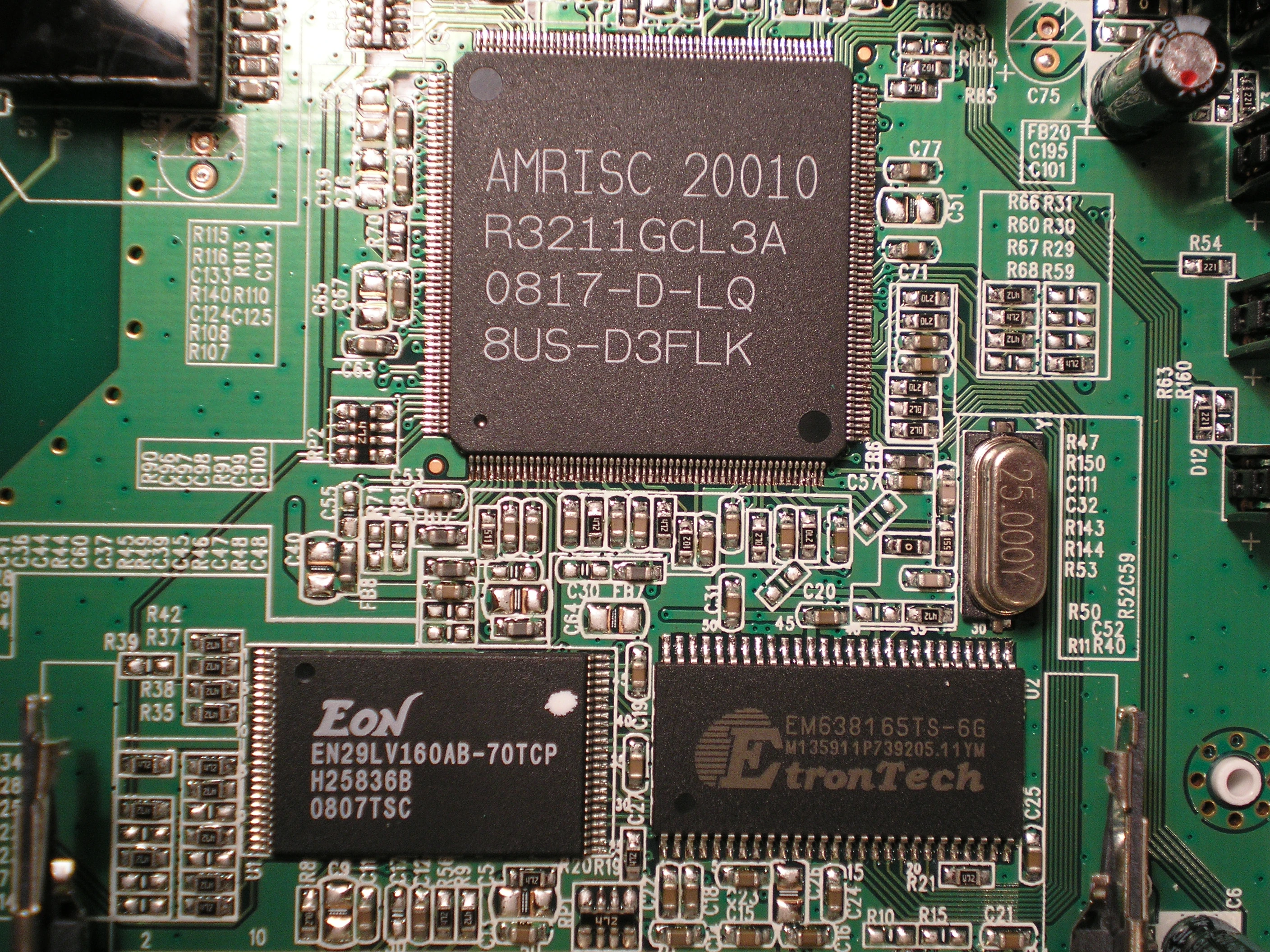

Asus RT-N11b Asus RT-N11c Asus RT-N11d

FCC PicturesEdit

Fixme This section is in need of cleanup!

NotesEdit


Hardware ModificationEdit
