Asus RT-N15
Asus RT-N15a

Homepage

RT-N15

Wikipedia

Asus Routers

dd-wrt

?

OpenWRT

?

Tomato

?

TomatoUSB

Not Supported

Gargoyle

?

NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power.

SpecsEdit

Fixme This section is in need of cleanup!

Platform

Serial Num. = ?
FCC ID = MSQ-RTN15
CPU Type = Ralink RT2880F GV76440C0 0740ST
MIPS Rev = ?
CPU Speed = 266MHz
Bus = ?
Flash Type = Parallel
Flash Chip = MX T072421 29LV320CBT 2U761500A1
Flash Size = 4MB
Max Firmware Size = 3801088 bytes
RAM Size = 32MB (2x 16MB)
RAM Chip = Samsung 743 K4S281632K-UCG0
nvram Size = ?
Switch = Ralink RTL8366SR 7A085S2 G742B
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-10/100/1000-WAN 4-10/100/1000-LAN
Wired Standard = IEEE 802.3/3u/3ab
boot_wait = ?
bootloader = ?
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = No
PoE = No
Power = 5V/2.5A
Color of LEDs = ?
Size = ?
USB = No
Serial Port = Yes
JTAG Port = No
Supported by TJTAG 3.02 = ?
Supported by dd-wrt as of = v.24 SP2 - build 16214 - 20110217
dd-wrt K2.4 Support = ?
dd-wrt K2.6 Support = ?
Special Features = Gigabit Switch

Radio

Wireless Radio = Ralink RT2820L CV13930B 07125T
WLAN DSP processor = ?
Antenna Connector Type = Internal
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = 2.4GHz ~ 2.5GHz
 802.11n Draft = up to 300Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

Threads of interestEdit

FlashingEdit

Fixme This section is in need of cleanup!

File - factory-to-ddwrt.trx

UpgradingEdit

Fixme This section is in need of cleanup!

If dd-wrt is already on the router.

File - asus-rt-n15-ddwrt-webflash.bin

RevertingEdit

Fixme This section is in need of cleanup!

JTAG/Serial InfoEdit

JTAGEdit

JTAG PinoutsEdit
Fixme This section is in need of cleanup!
JTAG RecoveryEdit
Fixme This section is in need JTAG Recovery Instructions!

SerialEdit

Serial PinoutsEdit
Fixme This section is in need of cleanup!
Hyper terminal Setup in Windows XPEdit
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XPEdit
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial RecoveryEdit
Fixme This section is in need of Serial Recovery Instructions!

vlan InfoEdit

Fixme This section is in need of cleanup!

PicturesEdit

Asus RT-N15b

FCC PicturesEdit

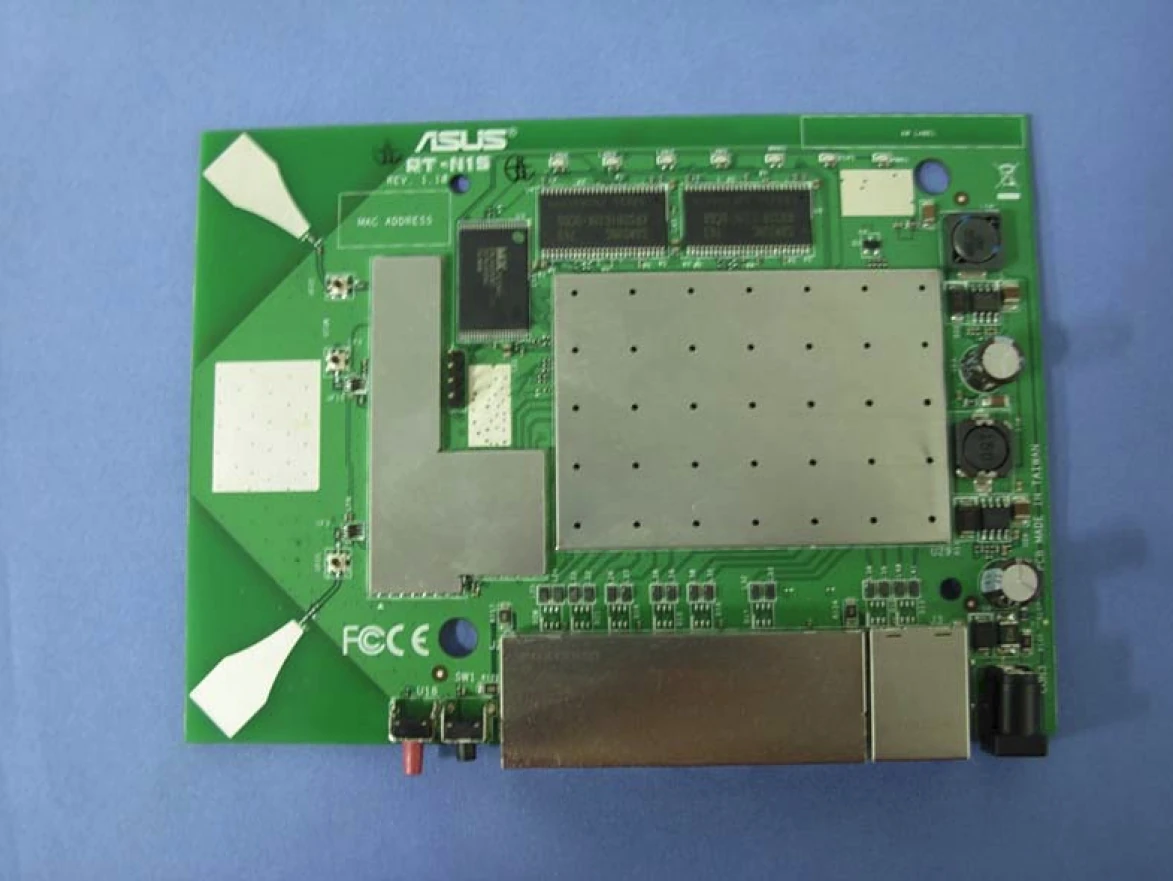

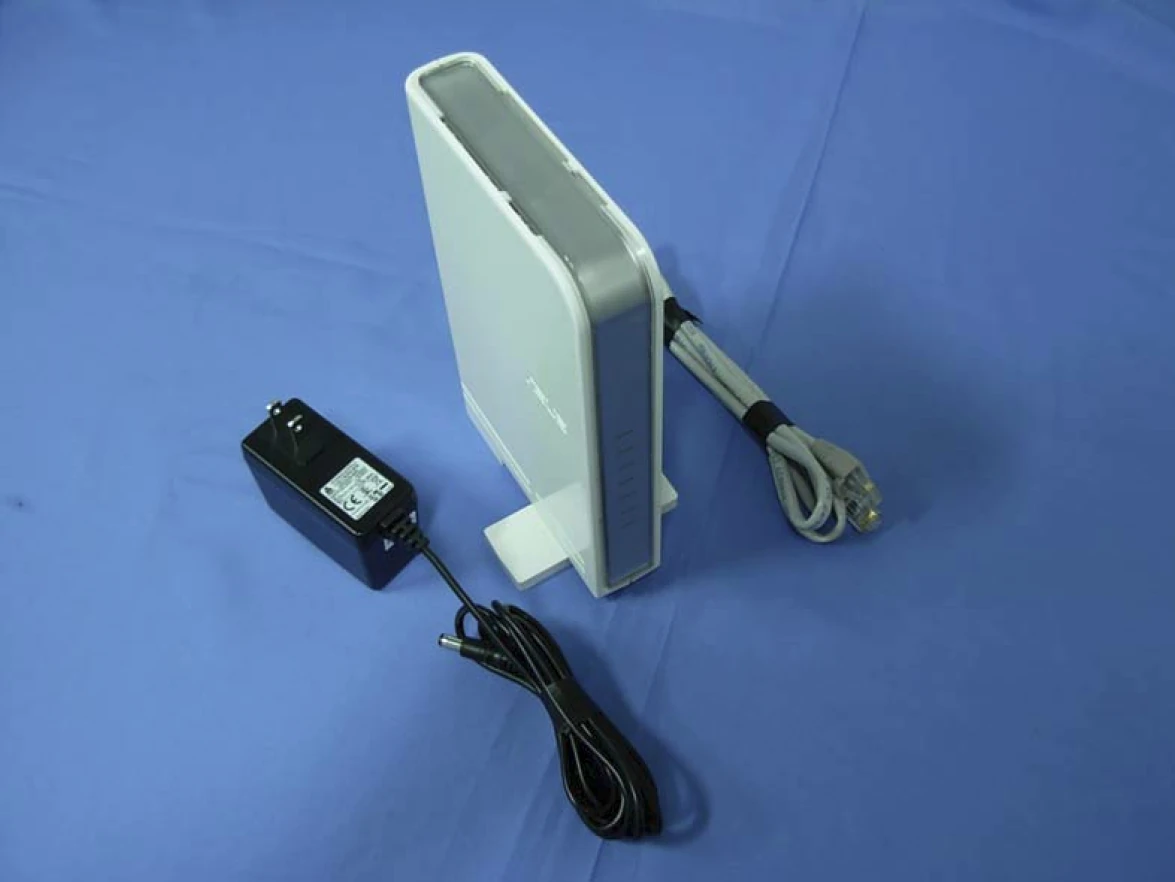

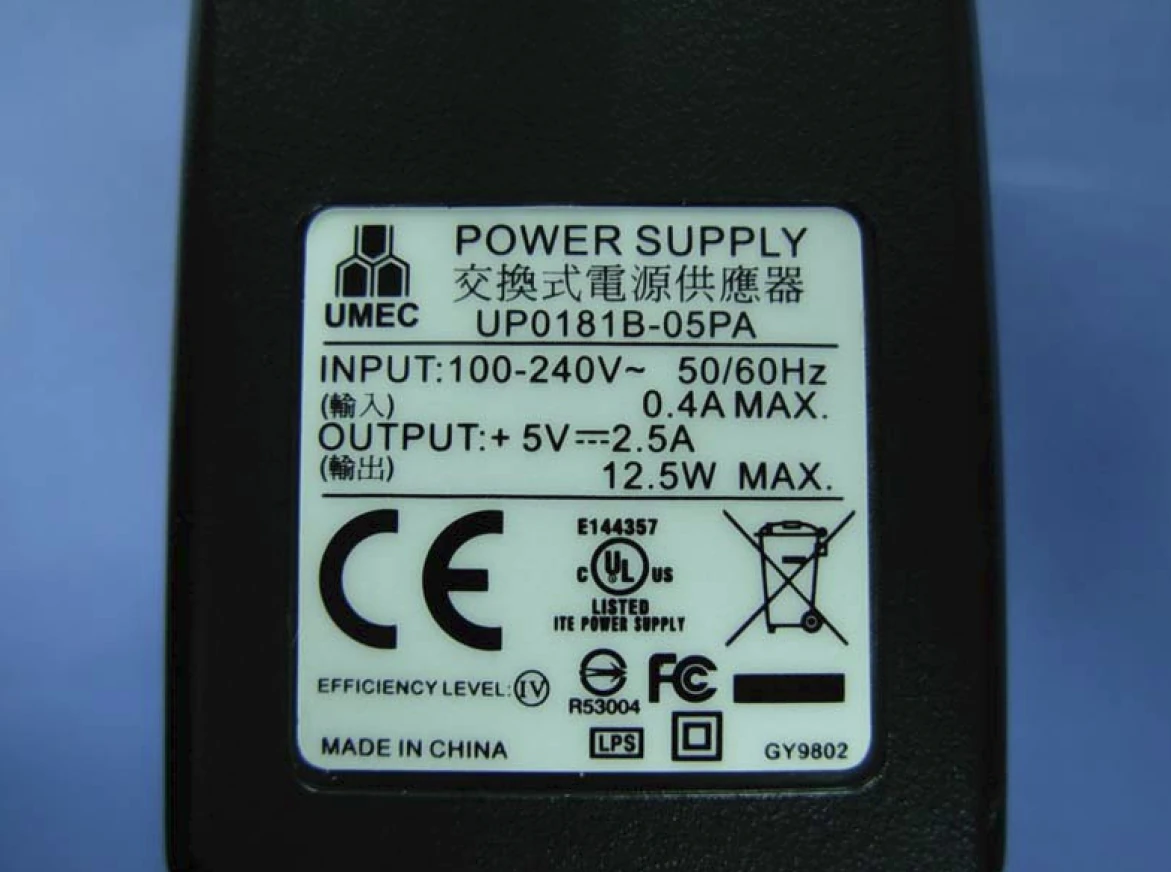

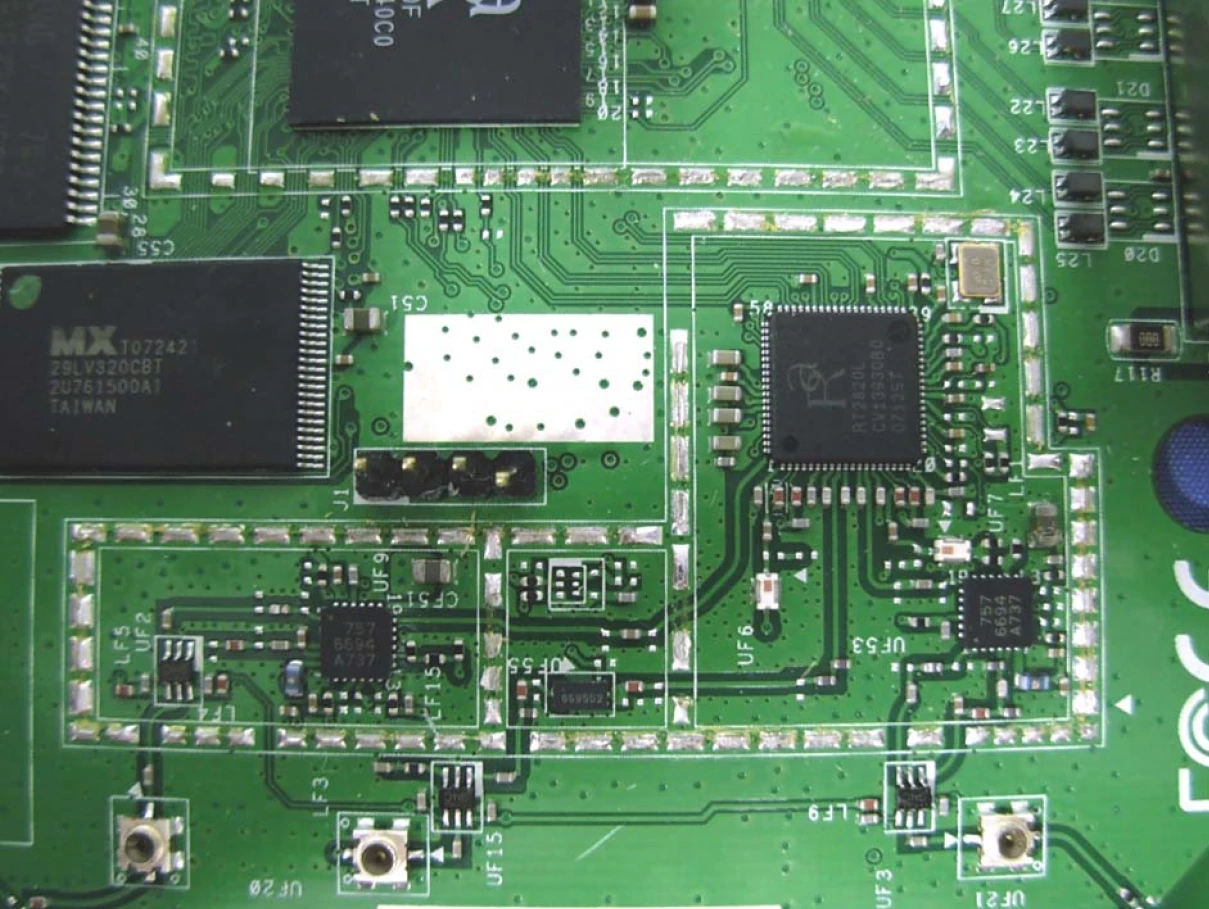

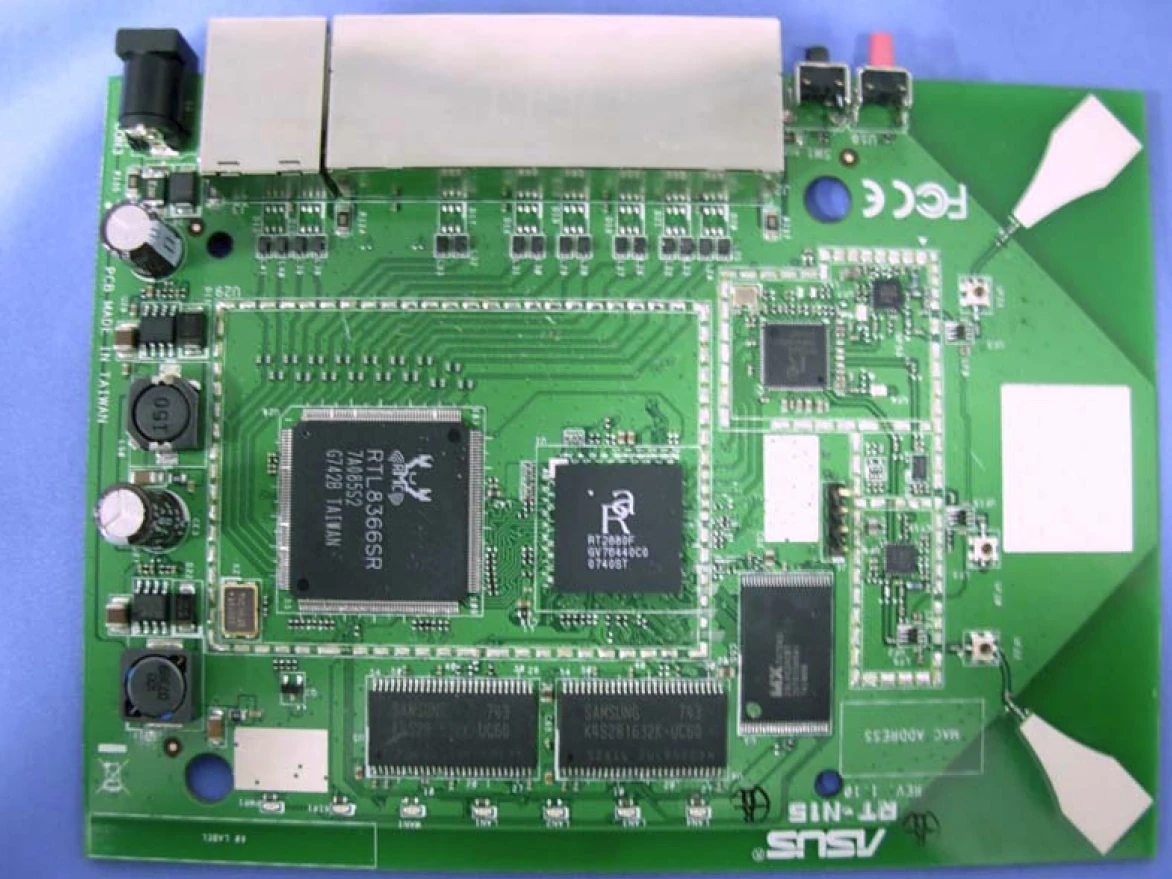

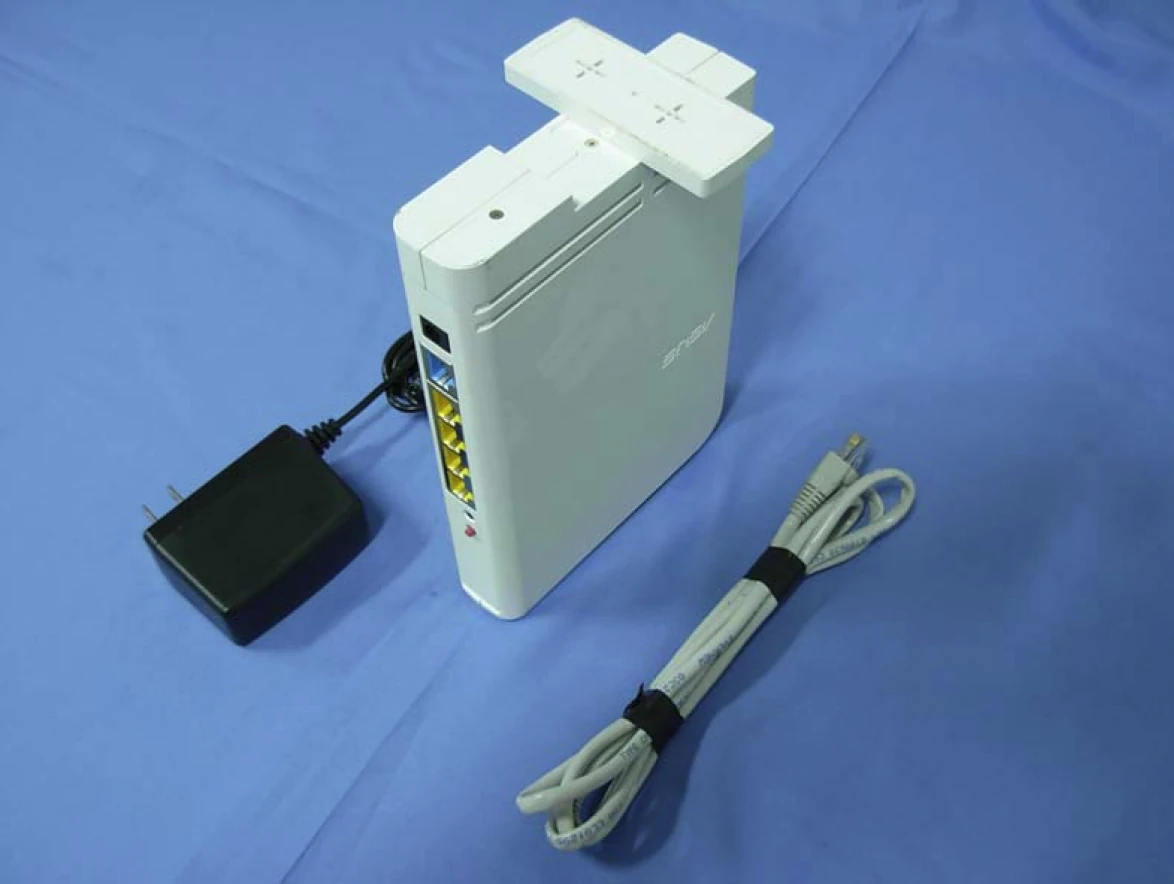

Asus RT-N15 FCCa Asus RT-N15 FCCb Asus RT-N15 FCCc

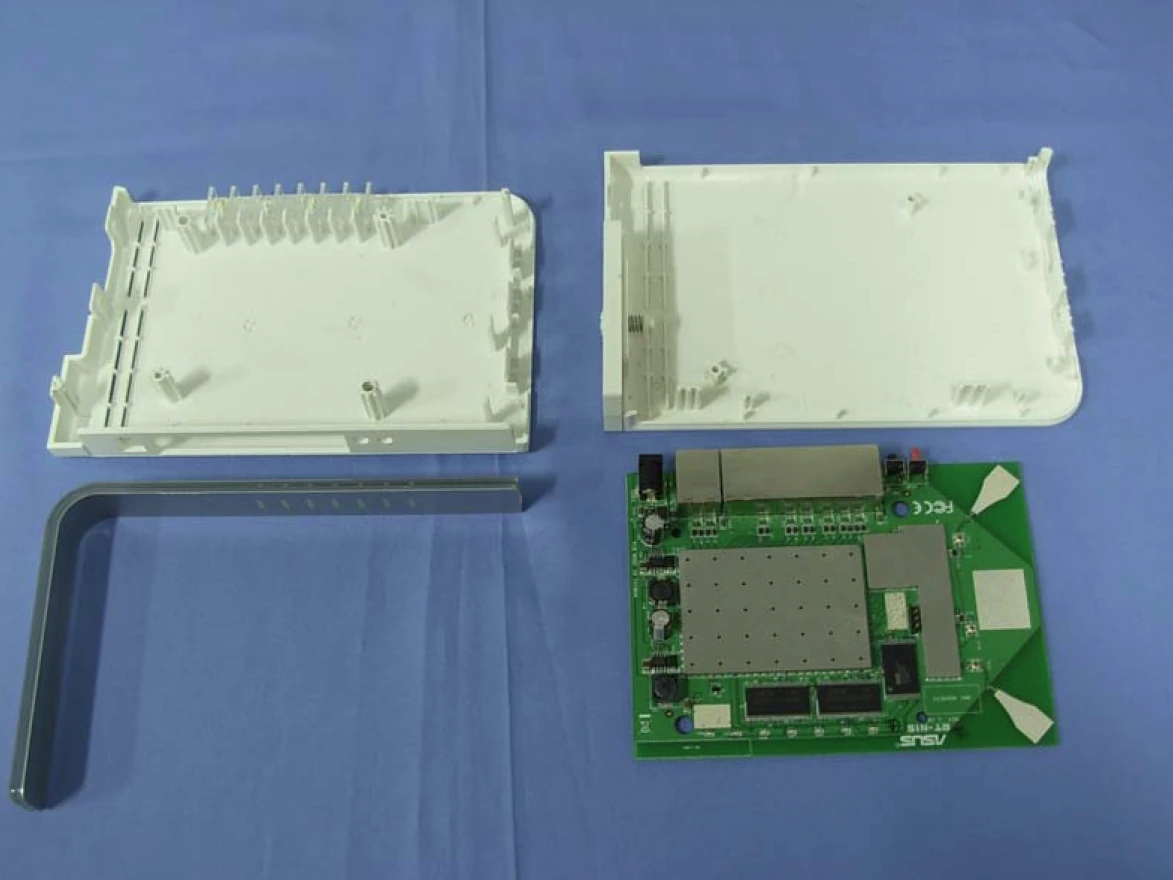

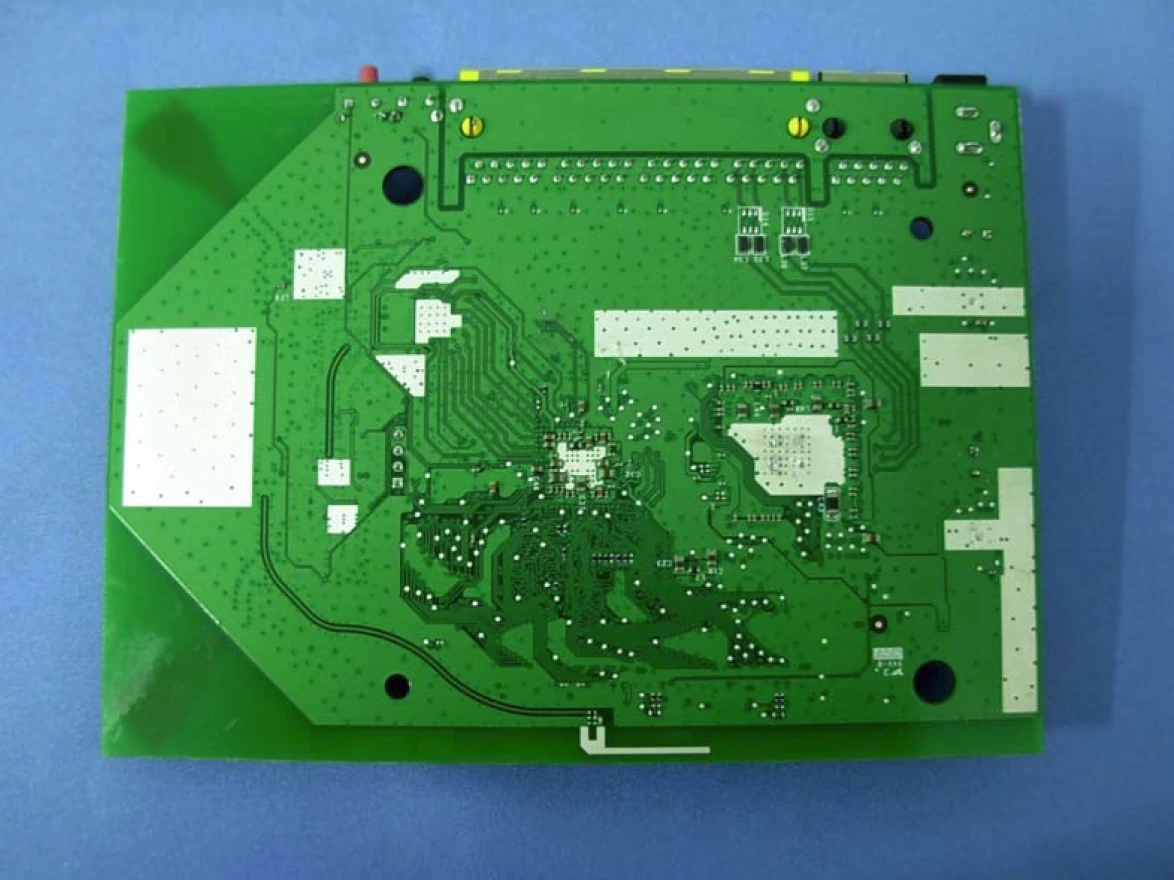

Asus RT-N15 FCCd Asus RT-N15 FCCe Asus RT-N15 FCCf

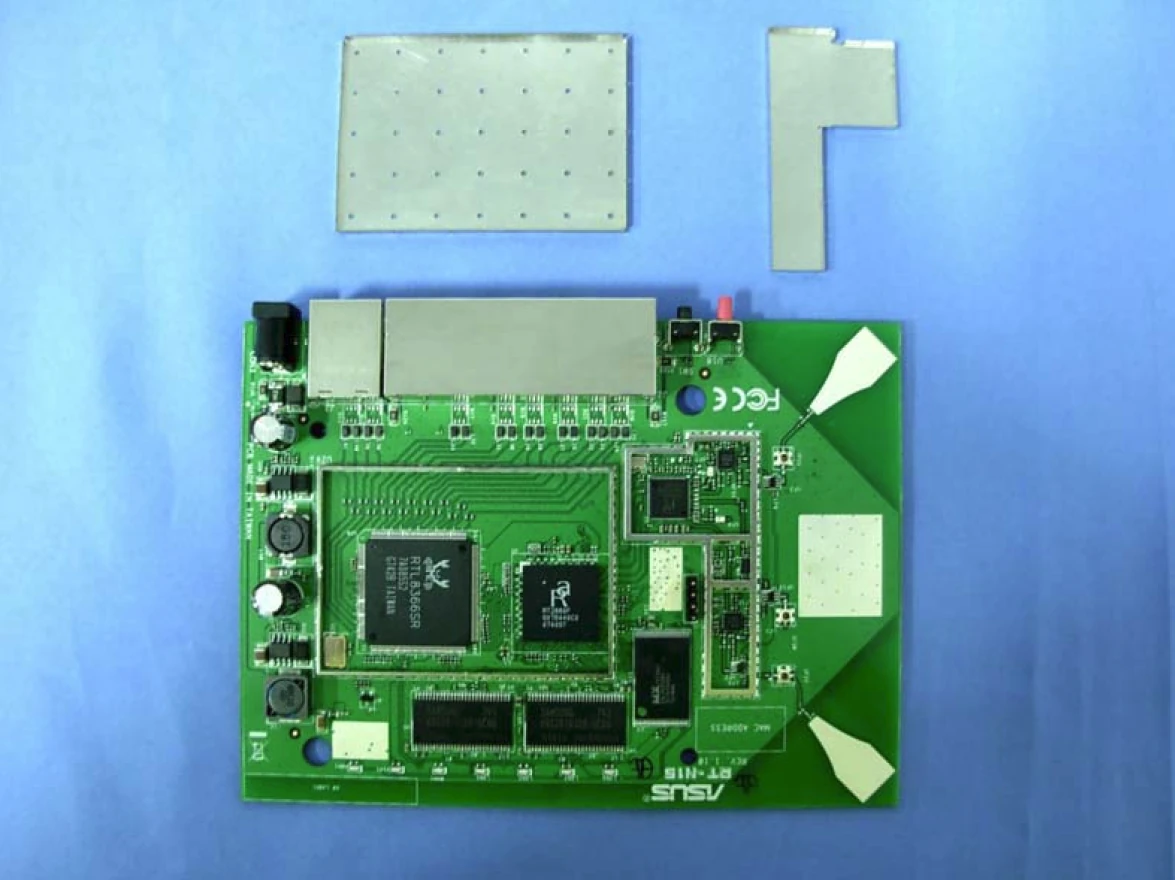

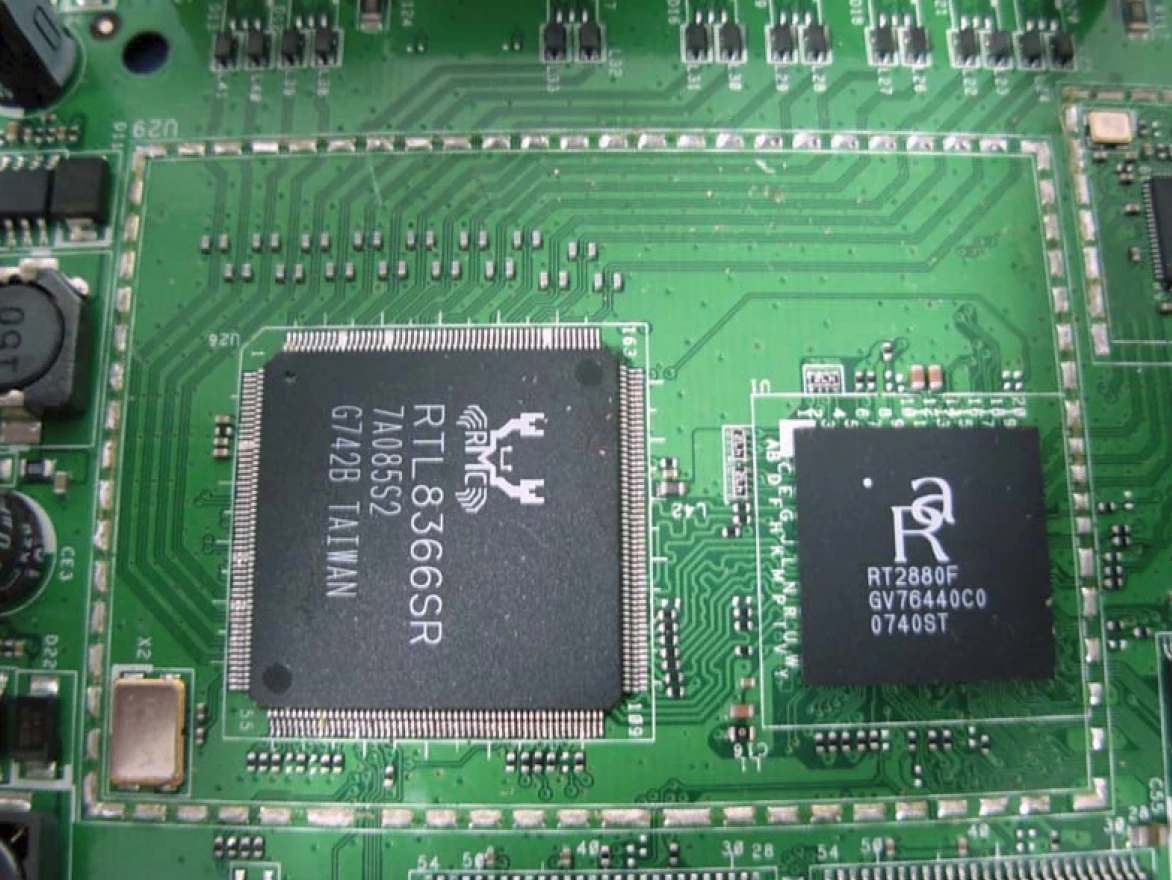

Asus RT-N15 FCCg Asus RT-N15 FCCh Asus RT-N15 FCCi

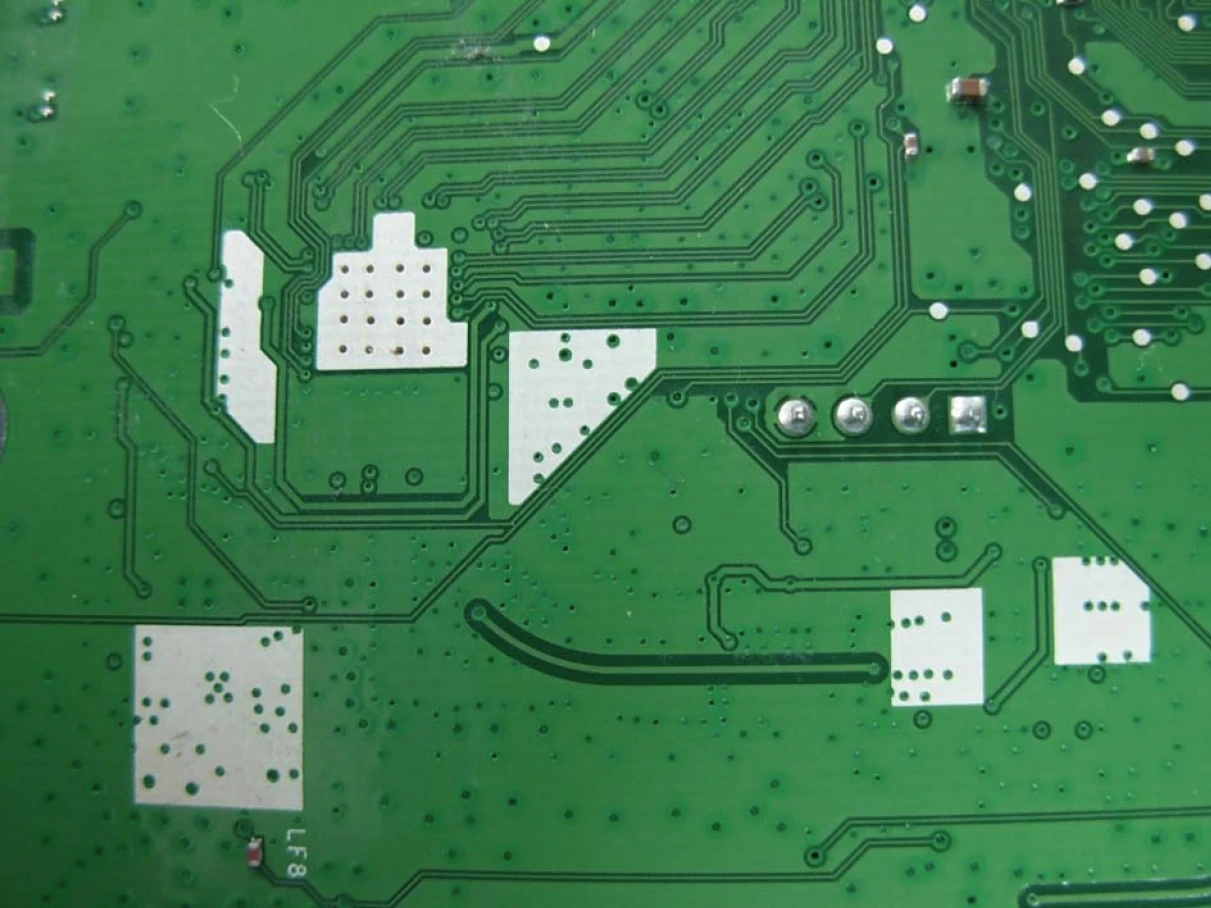

Asus RT-N15 FCCj Asus RT-N15 FCCk

NotesEdit
