WARNING: It is recommended to use ASUS Firmware restoration tool for ASUS routers initial flash
(use *.TRX file)
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

 This section is in need of cleanup!

Platform

Serial Num. = ?
FCC ID = MSQWL520G

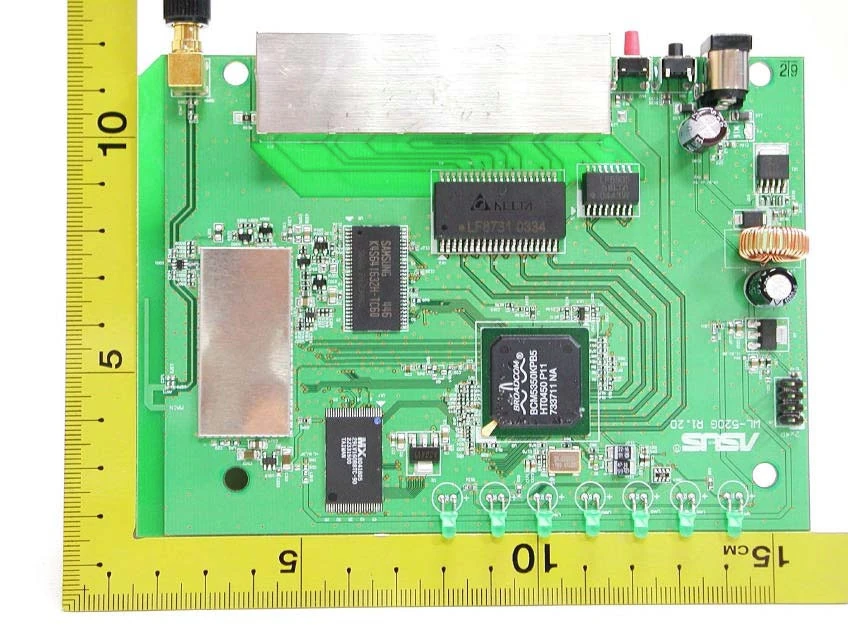

CPU Type = Broadcom BCM5350KPB5 (BCM5350K SoC)
MIPS Rev = ?
CPU Speed = 200MHz
Bus = ?
Flash Type = Parallel
Flash Chip = MX 29LV160R3TC-90?
Flash Size = 2MB
Max Firmware Size = ?
RAM Size = 8MB
RAM Chip = Samsung 446 K4S641632H-1C60
nvram Size = ?
Switch = Broadcom BCM5350KPB5 (BCM5350K SoC)
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-WAN 4-LAN
Wired Standard = IEEE 802.3?
boot_wait = ?
bootloader = CFE
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = No
PoE = No

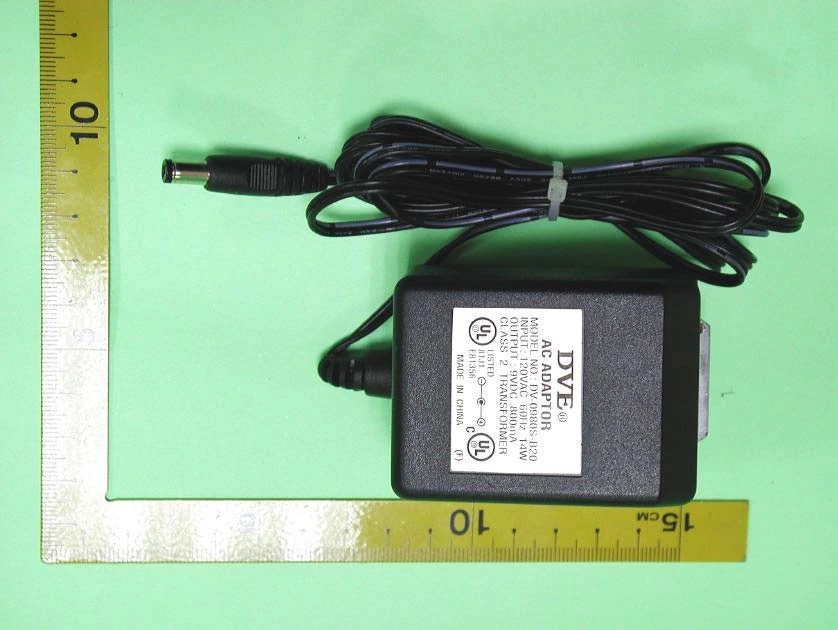

Power = 9
Color of LEDs = ?
Size = ?
USB = No
Serial Port = Yes
JTAG Port = No
Supported by TJTAG 3.02 = No
Supported by dd-wrt as of = V24-SP1 micro
dd-wrt K2.4 Support = Yes
dd-wrt K2.6 Support = No
Special Features = ?

Radio

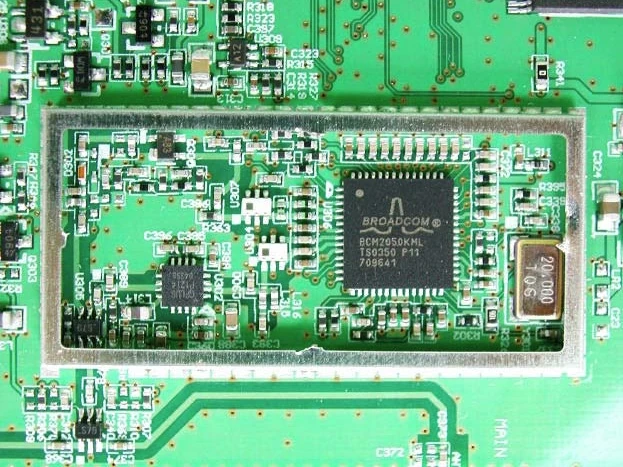

Wireless Radio = Broadcom BCM5350KPB5 (BCM5350K SoC)
WLAN DSP processor = ?
Antenna Connector Type = RP-SMA
Wireless Standard = IEEE 802.11b/g
WiFi Operating Frequency = ?
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

 This section is in need of cleanup!

 This section is in need of cleanup!

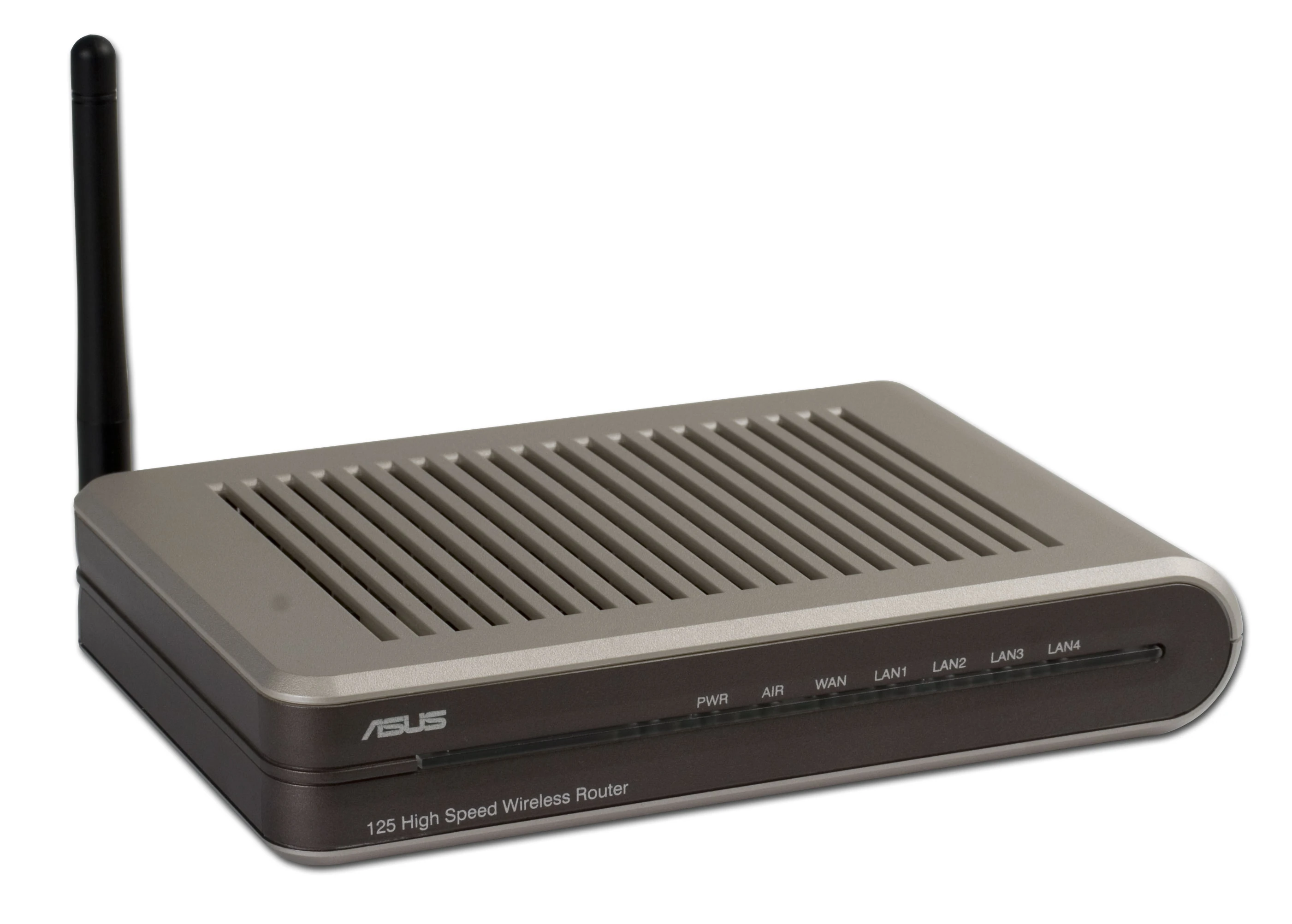

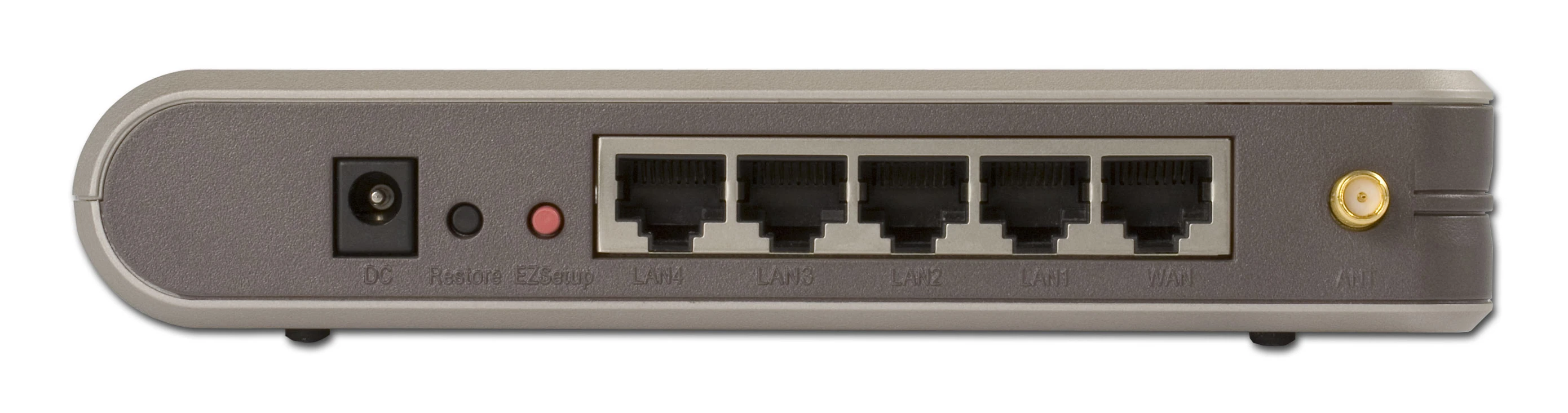

• Asus WL520G

If dd-wrt is already on the router follow these instructions. If stock firmware is on the router follow the flashing instructions.

1. Check for recommended builds here first.
2. Set your computer to a static IP of 192.168.1.7. (or to whatever subnet the router is on) Disable all firewalls and security. Disable wireless on your computer and only have the router connected to the flashing computer by the ethernet cable between the two.
3. Hard reset or 30/30/30 (If the router supports it, if not, reset to defults in the GUI) prior to flashing. Wait. Check for password page on re-login and change password.
4. Flash firmware. You can use the webgui except if you have a belkin router. (For belkin use tftp.exe to flash)
5. Wait...at least three minutes. Lights should return to normal. See important2, below. Failing to wait is how most people brick their routers.
6. Do a power cycle of the router. (Unplug the cord, count to 30 and plug it back in.)
7. Wait for the lights to return to normal usually about 2 minutes.
8. Hard reset or 30/30/30 again (If the router supports it, if not, reset to defults in the GUI). Wait. Check for the password page and re-login to change the password. Then you can reconfigure your settings manually.
9. Once configured set your computer back to autoIP and autoDNS.


Important1: This Hard reset or 30/30/30 works fine for Asus router, but you do have to power cycle after the reset.

Important2: After you flash the firmware, and before you do the hard reset, the router will be building some nvram settings. YOU MUST WAIT FOR THIS TO FINISH PRIOR TO DOING ANYTHING WITH THE ROUTER INCLUDING A HARD RESET. Usually, you can tell when this process is completed by the WAN light coming on, but it does take several minutes. Go have a beer. There are starting to be more and more people who BRICK their routers by not waiting until the nvram is rebuilt, PRIOR to doing a hard reset. YOU NEED TO WAIT!

 This section is in need of cleanup!

JTAG Pinouts

 This section is in need of cleanup!

JTAG Recovery

 This section is in need JTAG Recovery Instructions!

Serial Pinouts

 This section is in need of cleanup!

Hyper terminal Setup in Windows XP

In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.

Putty Setup in Windows XP

After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open

Serial Recovery

 This section is in need of Serial Recovery Instructions!

 This section is in need of cleanup!
