Belkin F7D3301 v1
Belkin F7D3301 v1.0a
Share Max Wireless Router

Homepage

F7D4301v1

Wikipedia

?

dd-wrt

?

OpenWRT

?

Tomato

?

TomatoUSB

Not Supported

Gargoyle

?

WARNING: Always use TFTP to flash Belkin routers if at all possible! Upgrading dd-wrt from the web interface can lead to a bricked (nonfunctional) unit!
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

SpecsEdit

Fixme This section is in need of cleanup!

Platform

Serial Num. = ?
FCC ID = K7SF7D3301V1

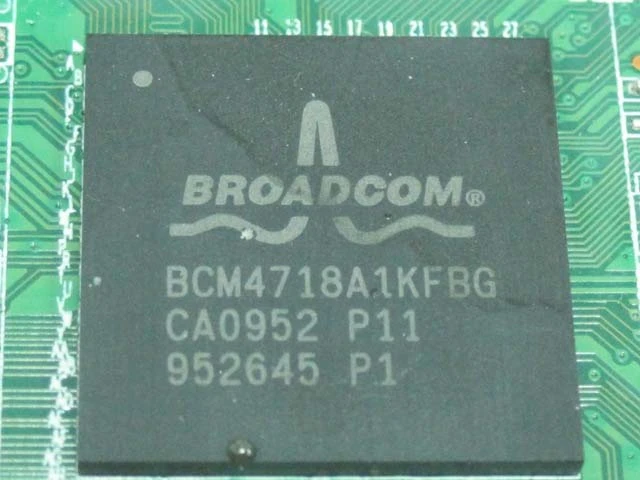

CPU Type = Broadcom BCM4718A1KFBG (BCM4718)
MIPS Rev = ?
CPU Speed = 480MHz
Bus = ?
Flash Type = Parallel
Flash Chip = CFEON (EON) EN29LV640B
Flash Size = 8MB
Max Firmware Size = 7995392 bytes
RAM Size = 64MB
RAM Chip = EtronTech EM68B16CWPA-25H N208160AFL03811ZQ
          (32M x 16 bit DDRII Synchronous DRAM (SDRAM))
          Etron Technology, Inc.
nvram Size = ?

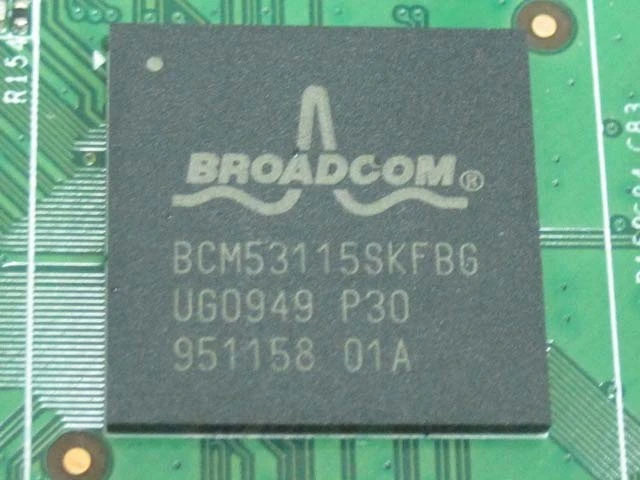

Switch = Broadcom BCM53115SKFBG (BCM53115)
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-10/100/1000-WAN 4-10/100/1000
Wired Standard = IEEE 802.3?
boot_wait = ?
bootloader = CFE
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = No
PoE = No
Power = 12v 1.5A
Color of LEDs = ?
Size = ?
USB = 2x USB 2.0
Serial Port = Yes
JTAG Port = Yes
Supported by TJTAG 3.02 = ?
Supported by dd-wrt as of = v24 k2.6 15156
dd-wrt K2.4 Support = No
dd-wrt K2.6 Support = Yes
Special Features = WIP, gigaswitch

Radio (wl0)

Wireless Radio = Broadcom BCM4718A1KFBG (BCM4718 SoC)
WLAN DSP processor = ?
Antenna Connector Type = Internal
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = 2.4GHz
 802.11n Draft = up to 300Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

Links of InterestEdit

FlashingEdit

Fixme This section is in need of cleanup!

UpgradingEdit

Fixme This section is in need of cleanup!

RevertingEdit

Fixme This section is in need of cleanup!

JTAG/Serial InfoEdit

JTAGEdit

JTAG PinoutsEdit
Fixme This section is in need of cleanup!
JTAG RecoveryEdit
Fixme This section is in need JTAG Recovery Instructions!

SerialEdit

J1 header available. 1-TX 2-RX 3-GND

Serial PinoutsEdit
Fixme This section is in need of cleanup!
Hyper terminal Setup in Windows XPEdit
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XPEdit
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial RecoveryEdit
Fixme This section is in need of Serial Recovery Instructions!

USB InfoEdit

The USB port is where you can connect an external USB hard drive or flash drive. Which can do a multitude of things. You can use in as a NAS, storage for a FTP server, use Optware to run external programs like torrent software, samba for sharing files to your network, share a USB printer with your network... The list of possibilities is long, it just takes a little research.

ProFTPd is included in most the newer builds of dd-wrt. Check the features chart to be sure.

A ftp server, file sharing, and a media sever is included in TomatoUSB if your device is compatable.

vlan InfoEdit

Fixme This section is in need of cleanup!

PicturesEdit

Belkin F7D3301 v1.0b Belkin F7D3301 v1.0c Belkin F7D3301 v1.0d

FCC PicturesEdit

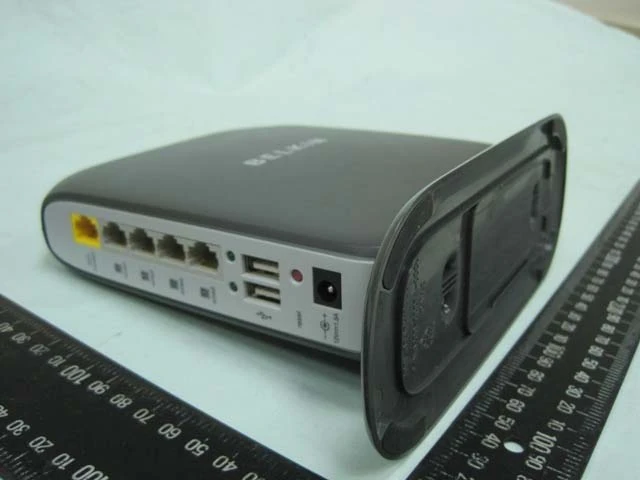

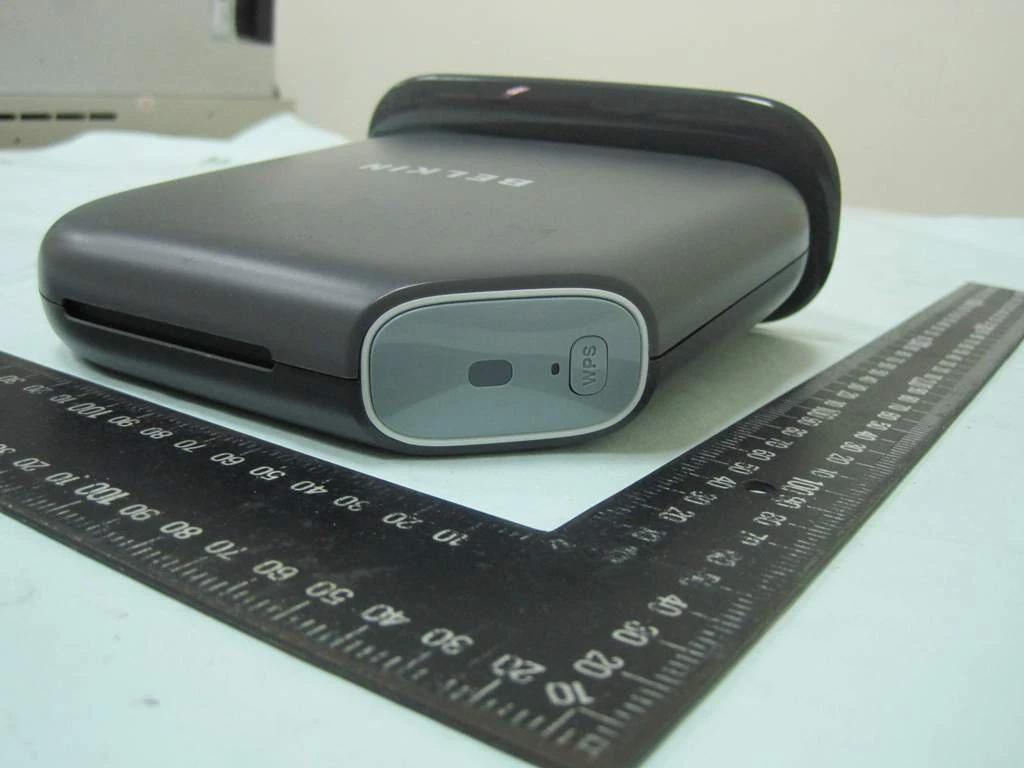

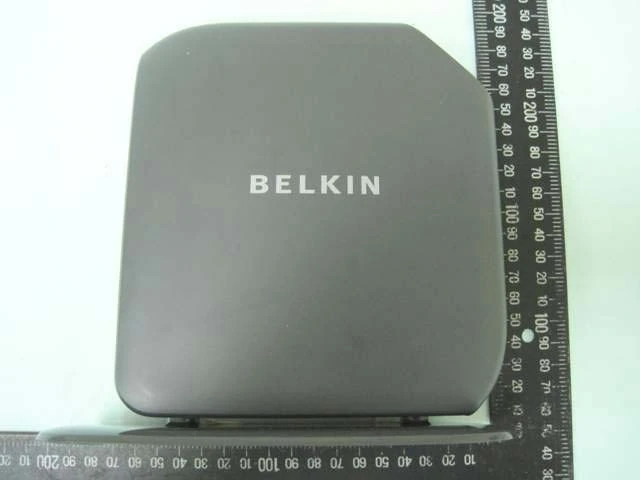

Belkin F7D3301 v1.0 FCCa Belkin F7D3301 v1.0 FCCb Belkin F7D3301 v1.0 FCCc

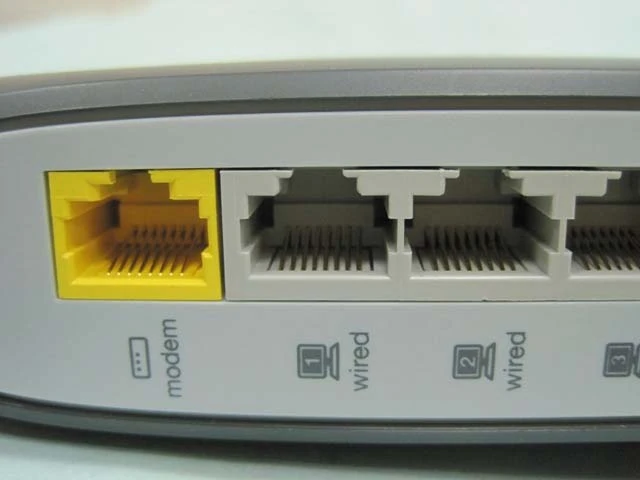

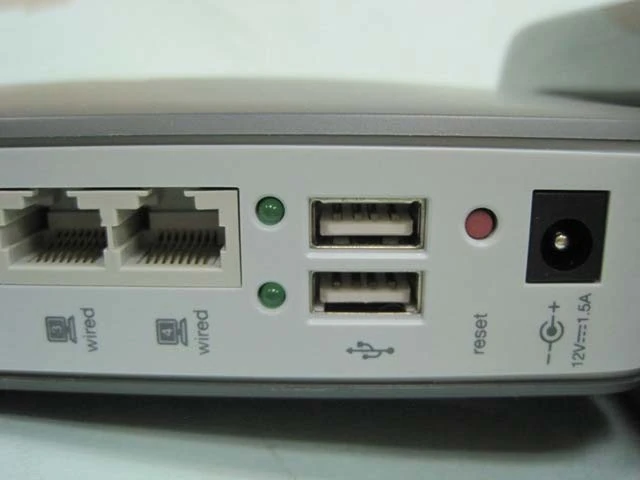

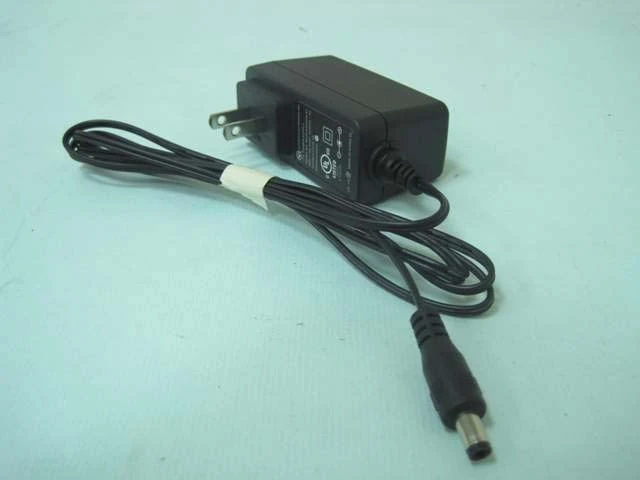

Belkin F7D3301 v1.0 FCCd Belkin F7D3301 v1.0 FCCe Belkin F7D3301 v1.0 FCCf

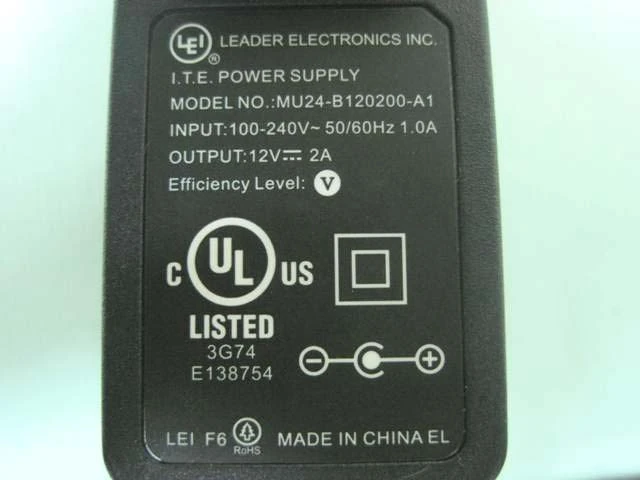

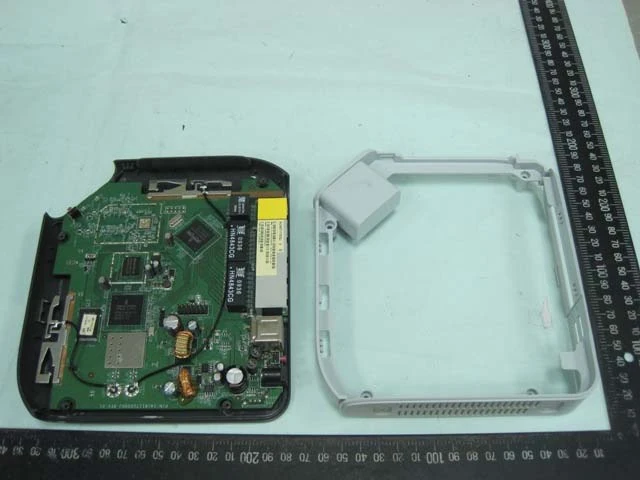

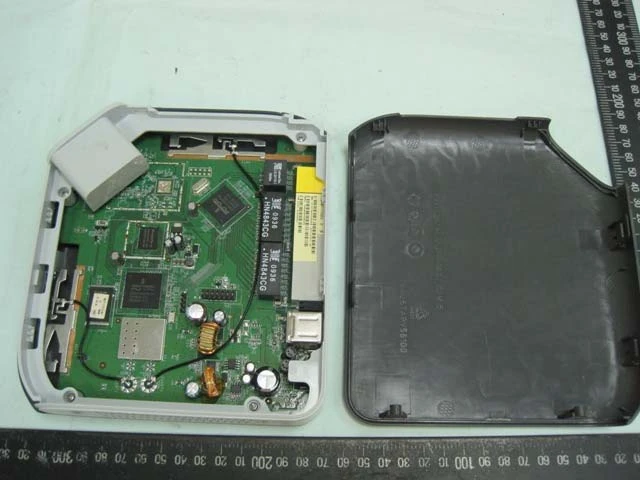

Belkin F7D3301 v1.0 FCCg Belkin F7D3301 v1.0 FCCh Belkin F7D3301 v1.0 FCCi

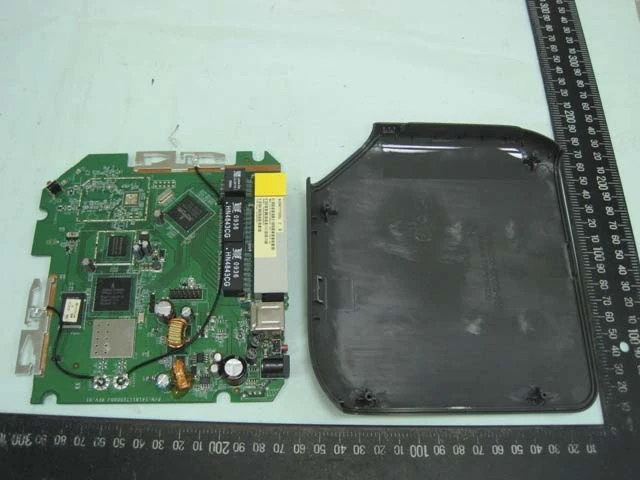

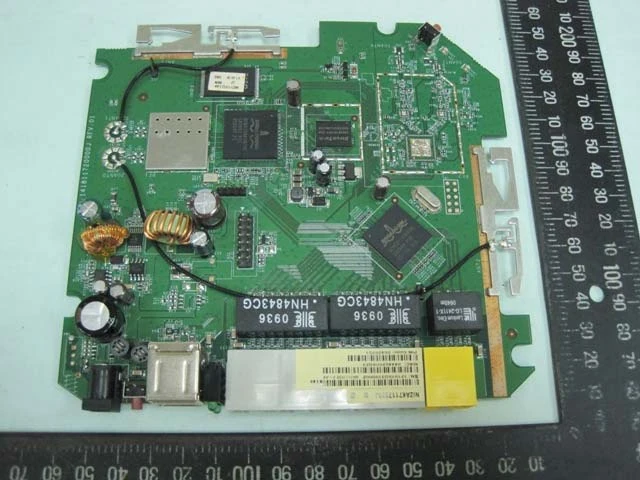

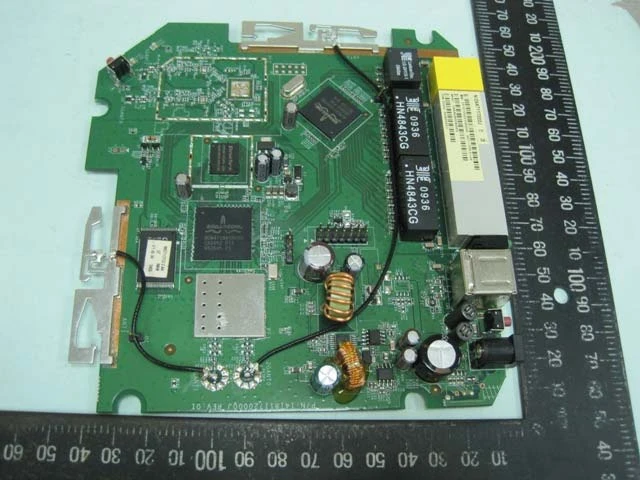

Belkin F7D3301 v1.0 FCCj Belkin F7D3301 v1.0 FCCk Belkin F7D3301 v1.0 FCCl

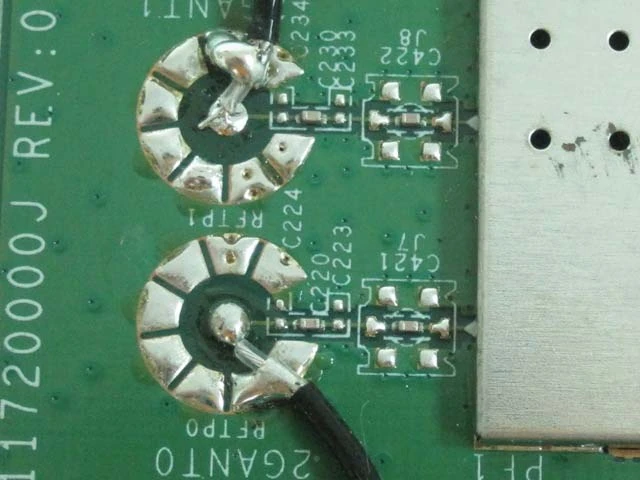

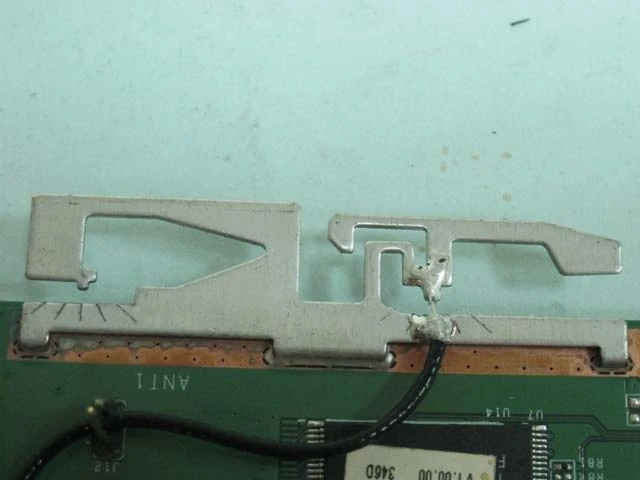

Belkin F7D3301 v1.0 FCCm Belkin F7D3301 v1.0 FCCn Belkin F7D3301 v1.0 FCCo

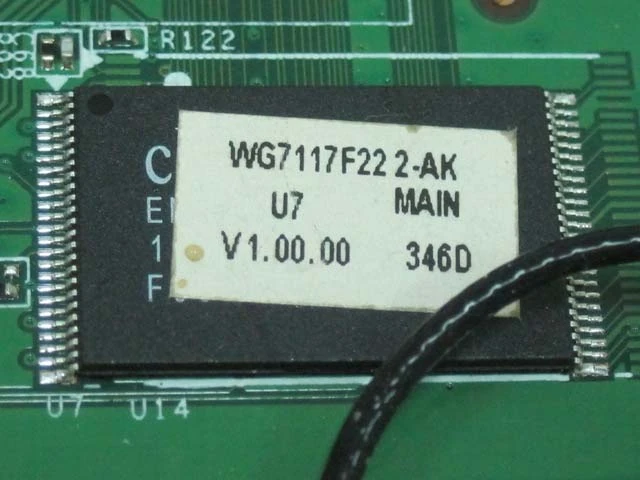

Belkin F7D3301 v1.0 FCCp Belkin F7D3301 v1.0 FCCq Belkin F7D3301 v1.0 FCCr

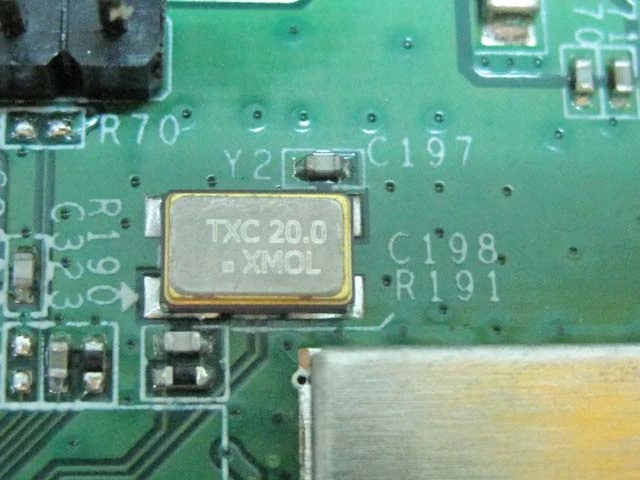

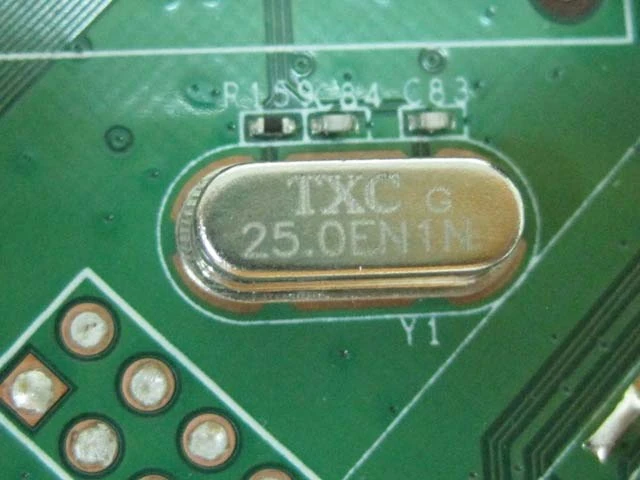

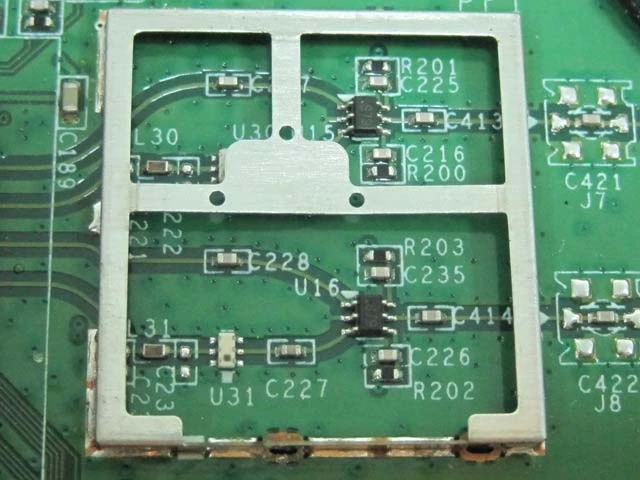

Belkin F7D3301 v1.0 FCCs Belkin F7D3301 v1.0 FCCt Belkin F7D3301 v1.0 FCCu
