D-Link DIR-412 vA1
D-Link DIR-412 vA1a

Homepage

DIR-412

Wikipedia

?

dd-wrt

?

OpenWRT

?

Tomato

?

TomatoUSB

Not Supported

Gargoyle

?

NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

SpecsEdit

aFixme This section is in need of cleanup!

Platform:

FCC ID = KA2IR4121

CPU Type = Ralink RT3050F

CPU Speed = 320MHz

Flash Type = Parallel

Flash Size = 4 MB

RAM Size = 32 MB

RAM Chip = winbond W9825G6EH-75 10195 60062P00001

nvram Size = ?

Switch = Ralink RT3050F (SoC)

Ethernet Port Count = 1-10/100-WAN/LAN Wired

Standard = IEEE 802.3/3u

Flash Card Socket/Type = No SD/MMC

Mod Support = No

MiniPCI slots = No

PoE = No

Power = 5V/2.5A

USB = 1-USB 2.0

Serial Port = Yes

JTAG Port = No Supported by TJTAG/Version = ?

Supported by dd-wrt as of = v.24 SP2 DIR300 Rev B1 - build 12729 - 2009/08/24 dd-wrt

Radio

Wireless Radio = Ralink RT3050F (SoC)
WLAN DSP processor = ?
Antenna Connector Type = Internal
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = 2.4GHz~2.483GHz
 802.11n = up to 150Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

Links of InterestEdit

FlashingEdit

By kings

  1. remove power from the DIR-412, then find something to poke the reset hole.
  2. keep pressing the reset inside that hole and give power to the router, keep pressing until the power light turn yellow and start flashing.
  3. connect a lan cable between your pc and router, you need to manually set your pc to 192.168.0.2
  4. access 192.168.0.1, and you will see an "emergency firmware flashing" page
  5. select the dlink-dir300-factory-webflash.bin and click something like "upgrade"
  6. wait till it finish and you will be able to access the new dd-wrt at 192.168.1.1, also remember to change your pc to 192.168.1.x

but I cannot get the "WAN" port to work as WAN right now, it sort of stuck to lan... WAN interface never get an ip address. I did not try any USB HSPA modem though.

by kojirole

DIR-412 can use D-Link DIR-300(B1)/DIR-600(B1&B2) firmware using Emergency firmware flashing

when using ddwrt,cant use dir-412 as repeater,it will show 2 ssid but you cant repeat anything

enjoy!

UpgradingEdit

Fixme This section is in need of cleanup!

RevertingEdit

Fixme This section is in need of cleanup!

JTAG/Serial InfoEdit

JTAGEdit

JTAG PinoutsEdit
Fixme This section is in need of cleanup!
JTAG RecoveryEdit
Fixme This section is in need JTAG Recovery Instructions!

SerialEdit

Serial PinoutsEdit

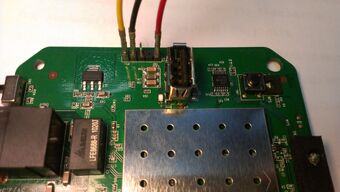

2013-01-17 12.59.55

Yellow - TX Black - GRN Red - RX

From left ro right:

1. TX

2. GND

3. VCC (3.3v)

4. RX (Square soldering pad)

Speed 57600

Hyper terminal Setup in Windows XPEdit
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 57600 (test also 115200)
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XPEdit
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 57600 (test also 115200)
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial RecoveryEdit
Fixme This section is in need of Serial Recovery Instructions!

USB InfoEdit

Fixme This section is in need of cleanup!

vlan InfoEdit

Fixme This section is in need of cleanup!

PicturesEdit

D-Link DIR-412 vA1a D-Link DIR-412 vA1c

FCC PicturesEdit

Fixme This section is in need of cleanup!

NotesEdit

This page also applies to the DLink DIR-300 Rev.B


Boot Log:

U-Boot 1.1.3 (Oct 27 2009 - 12:11:06) - SVN revision : 216
Model: WRGN28 sdk3300
Board: Ralink APSoC DRAM:  32 MB
config usb..
============================================
Ralink UBoot Version: 3.3 Alpha
--------------------------------------------
ASIC 3052_MP2 (Port5<->GigaSW)
DRAM component: 256 Mbits SDR
DRAM bus: 16 bit
Total memory: 32 MBytes
Flash component: NOR Flash
Date:Oct 27 2009  Time:12:11:06
============================================
icache: sets:256, ways:4, linesz:32 ,total:32768
dcache: sets:128, ways:4, linesz:32 ,total:16384
## Powering down port 0 ~ 4.
Please choose the operation:
1: Load system code to SDRAM via TFTP.
2: Load system code then write to Flash via TFTP.
3: Boot system code via Flash (default).
4: Entr boot command line interface.
9: Load Boot Loader code then write to Flash via TFTP.
0

3: System Boot system code via Flash.
## Booting image at bf050000 ...
We have SEAMA, Image Size = 3534880
Verifying Checksum ...
Uncompressing SEAMA linux.lzma ... OK
## Transferring control to Linux (at address bf05000c) ...
## Giving linux memsize in MB, 32

Starting kernel ...

Linux version 2.6.21 (tomcat@enzo) (gcc version 4.1.2) #1 Fri Apr 13 14:25:26 CST 2012
The CPU feqenuce set to 320 MHz
CPU revision is: 0001964c
Determined physical RAM map:
memory: 02000000 @ 00000000 (usable)
Built 1 zonelists.  Total pages: 8128
Kernel command line: console=ttyS1,57600n8 root=/dev/mtdblock1 noinitrd
Primary instruction cache 32kB, physically tagged, 4-way, linesize 32 bytes.
Primary data cache 16kB, 4-way, linesize 32 bytes.
Synthesized TLB refill handler (20 instructions).
Synthesized TLB load handler fastpath (32 instructions).
Synthesized TLB store handler fastpath (32 instructions).
Synthesized TLB modify handler fastpath (31 instructions).
Cache parity protection disabled
arch_init_irq: cause = 80800008, status = 1100ff00
PID hash table entries: 128 (order: 7, 512 bytes)
mips_time_init: calculating r4koff ... 0x00138800 (1280000)
CPU frequency 320.00 MHz
Using 160.000 MHz high precision timer.
Console: colour dummy device 80x25
Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
Memory: 28848k/32768k available (2650k kernel code, 3920k reserved, 669k data, 116k init, 0k highmem)
Mount-cache hash table entries: 512
NET: Registered protocol family 16
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
Time: MIPS clocksource has been installed.
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 1024 (order: 1, 8192 bytes)
TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP reno registered
VFS: Disk quotas dquot_6.5.1
Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
squashfs: version 3.2-r2 (2007/01/15) Phillip Lougher
squashfs: LZMA suppport for slax.org by jro
io scheduler noop registered
io scheduler deadline registered (default)
FLASH_API: MAN_ID=C2 DEV_ID=22A8 SIZE=4MB
rt3052 access driver initialization.
Ralink gpio driver initialized
HDLC line discipline: version $Revision: 1.1.1.1 $, maxframe=4096
N_HDLC line discipline registered.
Serial: 8250/16550 driver $Revision: 1.3 $ 2 ports, IRQ sharing disabled
serial8250: ttyS0 at I/O 0xb0000500 (irq = 37) is a 16550A
serial8250: ttyS1 at I/O 0xb0000c00 (irq = 12) is a 16550A
ra2880_read_mac: 00:00:00:00:00:00
ra2880_read_mac: 00:00:00:00:00:00
Ralink APSoC Ethernet Driver Initilization. v1.60  256 rx/tx descriptors allocated, mtu = 1600!
NAPI enable, weight = 0, Tx Ring = 256, Rx Ring = 256
ra2880_read_mac: 00:00:00:00:00:00
ra2880_read_mac: 00:00:00:00:00:00
PPP generic driver version 2.4.2
PPP BSD Compression module registered
PPP MPPE Compression module registered
NET: Registered protocol family 24
elbox physmap platform flash device: 00400000 at bfc00000
elbox-flash.0: Found 1 x16 devices at 0x0 in 16-bit bank
Amd/Fujitsu Extended Query Table at 0x0040
number of CFI chips: 1
cfi_cmdset_0002: Disabling erase-suspend-program due to code brokenness.
elbox-flash.0: the flash image has SEAMA header
elbox-flash.0: squashfs filesystem found at offset 1507390
Creating 8 MTD partitions on "elbox-flash.0":
0x0017005e-0x003af05e : "rootfs"
0x00050000-0x003f0000 : "upgrade"
0x00040000-0x00050000 : "devconf"
0x00030000-0x00040000 : "devdata"
0x003f0000-0x00400000 : "langpack"
0x00000000-0x00400000 : "flash"
0x00000000-0x00030000 : "u-boot"
0x00030000-0x00038000 : "boot env"
usbcore: registered new interface driver cdc_acm
drivers/usb/class/cdc-acm.c: v0.25:USB Abstract Control Model driver for USB modems and ISDN adapters
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
usbcore: registered new interface driver usbserial
drivers/usb/serial/usb-serial.c: USB Serial support registered for generic
usbcore: registered new interface driver usbserial_generic
drivers/usb/serial/usb-serial.c: USB Serial Driver core
drivers/usb/serial/usb-serial.c: USB Serial support registered for GSM modem (1-port)
usbcore: registered new interface driver option
drivers/usb/serial/option.c: USB Driver for GSM modems: v0.7.1
dwc_otg: config..done
dwc_otg: version 2.72a 24-JUN-2008
DWC_otg: Core Release: 2.66a
DWC_otg: Periodic Transfer Interrupt Enhancement - disabled
DWC_otg: Multiprocessor Interrupt Enhancement - disabled
DWC_otg: Using DMA mode
DWC_otg: Device using Buffer DMA mode
dwc_otg lm0: DWC OTG Controller
dwc_otg lm0: new USB bus registered, assigned bus number 1
dwc_otg lm0: irq 18, io mem 0x00000000
DWC_otg: Init: Port Power? op_state=1
DWC_otg: Init: Power Port (0)
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
u32 classifier
ip_conntrack version 2.4 (256 buckets, 2048 max) - 240 bytes per conntrack
ip_conntrack_pptp version 3.1 loaded
ip_nat_pptp version 3.0 loaded
ip_tables: (C) 2000-2006 Netfilter Core Team, Type=Linux
ipt_time loading
TCP cubic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
VFS: Mounted root (squashfs filesystem) readonly.
Freeing unused kernel memory: 116k freed

init started: BusyBox v1.11.1 (2011-05-04 16:18:46 CST)

starting pid 432, tty : '/etc/init.d/rcS'
Algorithmics/MIPS FPU Emulator v1.5
[/etc/init.d/S10init.sh]
[/etc/init.d/S15udevd.sh]
[/etc/init.d/S19devfs.sh]
[/etc/init.d/S19init.sh]
[/etc/init.d/S20init.sh]
DEVCONF: no config data available (ret=-1) !
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!     Uable to read device config.     !!
!! Setting is reset to factory default. !!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
DEFNODE[/etc/defnodes/S10device.xml]
DEFNODE[/etc/defnodes/S10phyinf.php]
DEFNODE[/etc/defnodes/S11devdata.xml]
DEFNODE[/etc/defnodes/S12flashspeed.php]
DEFNODE[/etc/defnodes/S20device.xml]
DEFNODE[/etc/defnodes/S21authentication.php]
DEFNODE[/etc/defnodes/S22timezone.php]
[/etc/scripts/setdate.sh] 01/01/2000 ...
Sat Jan  1 08:00:08 CST 2000
DEFNODE[/etc/defnodes/S30device.php]
DEFNODE[/etc/defnodes/S30device.xml]
DEFNODE[/etc/defnodes/S31diagnostic.xml]
DEFNODE[/etc/defnodes/S31locale.php]
DEFNODE[/etc/defnodes/S32layout.php]
DEFNODE[/etc/defnodes/S33wifi.php]
DEFNODE[/etc/defnodes/S40device.xml]
DEFNODE[/etc/defnodes/S90upnpigd.php]
DEFNODE[/etc/defnodes/S90upnpwfa.php]
SERVD: start service [LOGD]
[/etc/init.d/S20interfaces.sh]
SERVD: event [WANPORT.LINKDOWN] not found!
[/etc/init.d/S23udevd.sh]
[/etc/init.d/rcS] done!
[/etc/init0.d/S20phyinf.sh]: start ...
SERVD: start service [PHYINF.ETH-1]
SERVD: start service [PHYINF.ETH-2]
SERVD: start service [PHYINF.ETH-3]
[/etc/init0.d/S21layout.sh]: start ...
[/etc/init0.d/S21wlan.sh]: start ...
ra2880_read_mac: f0:7d:68:4a:23:a1
setlinktype: invalid type (-1) !
SERVD: start service [LAYOUT]
[/etc/init0.d/S40event.sh]: start ...
LAYOUT: Start Normal router layout ...
SERVD: event [SEALPAC.LOAD]
[/etc/init0.d/S40gpioevent.sh]: start ...
SEAMA: '/dev/mtdblock/5' is not a seama file !
interface ra0 does not exist!
SERVD: start service [WIFI.WLAN-1]
[/etc/init0.d/S40ttyevent.sh]: start ...
SERVD: start service [WIFI]
[/etc/init0.d/S41inf.sh]: start ...
rmmod: rt2860v2_ap: No such file or directory
rt2860v2_ap: module license 'unspecified' taints kernel.
2860 version : 1.9.0.0 (Apr 13 2012)


pAd = c0438000, size = 413288 Edit

<-- RTMPAllocAdapterBlock, Status=0
RX DESC a1a96000  size = 2048
<-- RTMPAllocTxRxRingMemory, Status=0
1. Phy Mode = 9
2. Phy Mode = 9
3. Phy Mode = 9
MCS Set = ff 00 00 00 01
Main bssid = f0:7d:68:4a:23:a0
<==== RTMPInitialize, Status=0
0x1300 = 00064380
SERVD: event [WLAN-1.UP]
device ra0 entered promiscuous mode
br0: port 1(ra0) entering learning state
br0: topology change detected, propagating
br0: port 1(ra0) entering forwarding state
br0: port 1(ra0) multicast bandwidth 900kbps
[/etc/init0.d/S41isplst.sh]: start ...
[/etc/init0.d/S42pthrough.sh]: start ...
[/etc/init0.d/S49ledcrtl.sh]: start ...
SERVD: stop service [MULTICAST]
SERVD: service [MULTICAST] is already stopped.
SERVD: start service [MULTICAST]
SERVD: start service [BRIDGE]
Configuration file: /var/servd/hostapd-ra0.conf
BRIDGE: The device is not in the bridge mode.
SERVD: start service [LAN]
Using interface ra0 with hwaddr f0:7d:68:4a:23:a0 and ssid 'dlink'
hostapd_setup_interface: return 0
[/etc/init0.d/S49simchk.sh]: start ...
[/etc/init0.d/S65ddnsd.sh]: start ...
[/etc/init0.d/S80telnetd.sh]: start ...
SERVD: start service [WAN]
SERVD: start service [DEVICE.PASSTHROUGH]
SERVD: start service [LED.CRTL]
[/etc/init0.d/rcS] done!

Please press Enter to activate this console. SERVD: start service [IPTABLES]
insmod: /lib/modules/2.6.21: No such file or directory
insmod: ip_stun_func.ko: module not found
REDSonic turbo net initialized
Network interface reset count v1.0
SERVD: start service [IPTABLES]
SERVD: service [IPTABLES] is already started.
SERVD: start service [SIM.CHK]
[/etc/events/sim_chk.sh] ...
SERVD: start service [INET.LAN-1]
SERVD: event [LAN-1.UP]
SERVD: start service [IPTMACCTRL]
SERVD: start service [IPTURLCTRL]
SERVD: start service [IPTPORTT]
SERVD: stop service [IPT.LAN-1]
SERVD: service [IPT.LAN-1] is already stopped.
SERVD: start service [IPT.LAN-1]
SERVD: start service [IPTABLES]
SERVD: service [IPTABLES] is already started.
SERVD: start service [INET.WAN-1]
SERVD: start service [INET.WAN-2]
ifsetup: (WAN-2) not active.
SERVD: service [INET.WAN-2] return error 8.
SERVD: start service [INET.WAN-3]
ifsetup: (WAN-3) no phyinf.
SERVD: service [INET.WAN-3] return error 9.
SERVD: start service [IPTMASQ]
SERVD: start service [IPTVSVR]
SERVD: start service [IPTPFWD]
SERVD: start service [IPTPORTT]
SERVD: service [IPTPORTT] is already started.
SERVD: start service [IPTDMZ]
IPTDMZ: cnt= 1
SERVD: start service [IPT.WAN-1]
SERVD: start service [IPT.WAN-2]
SERVD: start service [IPT.WAN-3]
SERVD: start service [CHKCONN.WAN-1]
SERVD: stop service [INET.WAN-3]
SERVD: service [INET.WAN-3] is already stopped.
SERVD: stop service [INFSVCS.LAN-1]
SERVD: service [INFSVCS.LAN-1] is already stopped.
SERVD: start service [INFSVCS.LAN-1]
SERVD: event [INFSVCS.LAN-1.UP]
SERVD: start service [ENLAN]
SERVD: event [STATUS.READY]
SERVD: start service [HTTP.LAN-1]
SERVD: start service [UPNP.LAN-1]
SERVD: event [UPNP.ALIVE.LAN-1]
SERVD: start service [DHCPS4.LAN-1]
SERVD: start service [DNS4.LAN-1]
SERVD: stop service [ROUTE.STATIC]
SERVD: service [ROUTE.STATIC] is already stopped.
SERVD: start service [ROUTE.STATIC]
SERVD: stop service [MULTICAST]
SERVD: start service [MULTICAST]
SERVD: stop service [IPTDEFCHAIN]
SERVD: service [IPTDEFCHAIN] is already stopped.
SERVD: start service [IPTDEFCHAIN]
SERVD: stop service [LLD2]
SERVD: service [LLD2] is already stopped.
SERVD: start service [LLD2]
SERVD: stop service [HTTP]
SERVD: service [HTTP] is already stopped.
SERVD: start service [HTTP]
SERVD: event [HTTP.UP] not found!
SERVD: stop service [DNS]
SERVD: service [DNS] is already stopped.
SERVD: start service [DNS]
killall: dnsmasq: no process killed
Sat Jan  1 00:00:41 2000
=>start gethostbyname:www.dlink.com
Sat Jan  1 00:00:41 2000
=>failed end gethostbyname:www.dlink.com
Sat Jan  1 00:00:41 2000
=>start gethostbyname:www.dlink.com.tw
Sat Jan  1 00:00:41 2000
=>failed end gethostbyname:www.dlink.com.tw
Sat Jan  1 00:00:41 2000
=>start gethostbyname:www.dlink.eu
Sat Jan  1 00:00:41 2000
=>failed end gethostbyname:www.dlink.eu
SERVD: event [WAN-3.PPP.DIALUP] not found!


starting pid 2026, tty : '-/bin/sh'

BusyBox v1.11.1 (2011-05-04 16:18:46 CST) built-in shell (msh)
Enter 'help' for a list of built-in commands.

help

Built-in commands:
-------------------
. : break cd continue eval exec exit export help login newgrp
read readonly set shift times trap umask wait

Hardware ModificationEdit


Ad blocker interference detected!


Wikia is a free-to-use site that makes money from advertising. We have a modified experience for viewers using ad blockers

Wikia is not accessible if you’ve made further modifications. Remove the custom ad blocker rule(s) and the page will load as expected.
