D-Link WDA-1320

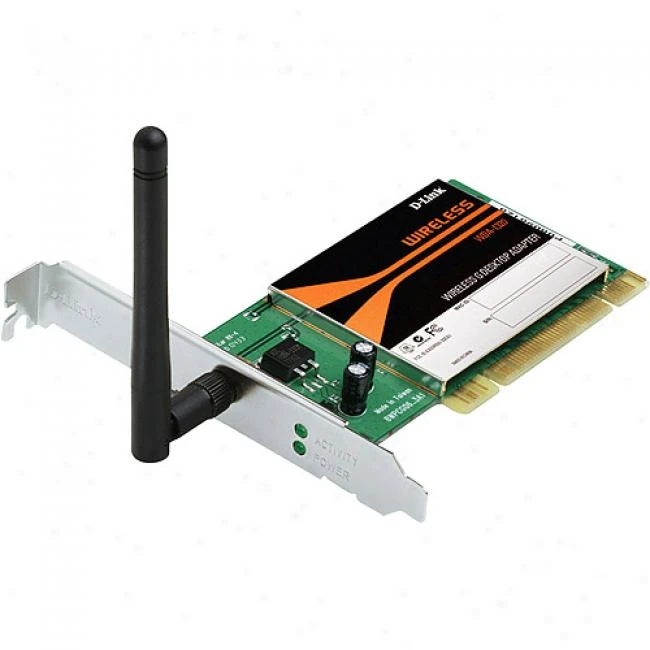

D-Link WDA-1320 a

Homepage

WDA-1320

Wikipedia

?

NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

SpecsEdit

Standards = IEEE 802.11b/g
Interface = 32-bit PCI
Wireless Signal Rates* With Automatic Fallback	=
 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, & 1Mbps
Frequency Range = 2.4GHz to 2.462GHz
Wireless Transmit Power = 13dBm ± 2dBm
Modulation Technology	= Orthogonal Frequency Division Multiplexing (OFDM)
                         Complementary Code Keying (CCK)
Internal Antenna Type = Dipole with Detachable Reverse SMA Connector
Security = 64/128-bit WEP
           Wi-Fi Protected Access (WPA)
Led = Link, Activity
Certifications = FCC
Operating Temperature = 32°F to 131°F (0°C to 55°C)
Operating Humidity = 90% Maximum (Non-condensing)
Dimensions = Item (WxDxH): 0.8” x 4.8” x 4.8”
        Packaging (WxDxH): 6.8” x 9.5” x 1.5”
Weight = Item: 0.3 lbs
         Packaging: 0.9lbs
Minimum System Requirements = Computer with:
 Windows® XP SP2 or Windows 2000 SP4***
 CD-ROM Drive
 20MB Hard Disk Space
 32-Bit PCI Slot

Links of InterestEdit

Fixme This section is in need of cleanup!

PicturesEdit

Fixme This section is in need of cleanup!

FCC PicturesEdit

Fixme This section is in need of cleanup!

NotesEdit
