DFI LANPARTY UT NF590 SLI-M2R/G
DFI LANPARTY UT NF590 SLI-M2R-G Mobo

Homepage

?

Wikipedia

?

SpecsEdit

CPU

AMD® Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Phenom2
Socket AM2
2000MT/s HyperTransport interface

Chipset

NVIDIA nForce® 590 SLI MCP - Northbridge: NVIDIA® C51XE
                             Southbridge: NVIDIA® MCP55PXE

Memory

Four 240-pin DDR2 DIMM sockets
Supports DDR2 533, DDR2 667,  DDR2 800, DDR2 1200 DIMMs
Supports dual channel (128-bit wide) memory interface
Supports up to 8GB system memory

Expansion Slots

2 PCI Express x16 slots - In SLI or Normal mode,
  each slot operates at full speed x16 lanes.
  Use identical SLI-ready PCI Express x16 graphics cards
1 PCI Express x1 slot
1 PCI Express x8 slot
3 PCI slots

BIOS

Award BIOS
CMOS Reloaded
CPU/DRAM overclocking
CPU/DRAM/Chipset overvoltage
4Mbit flash memory

Audio

Karajan audio module - Realtek ALC885 8-channel High Definition Audio CODEC
               6 audio jacks - 1 CD-in connector - 1  front audio connector
DAC SNR/ADC SNR of 106dB/101dB
Full-rate lossless content protection technology
S/PDIF-in/out interface

LAN

NVIDIA® MCP55PXE integrated with Gigabit MAC
           (Media Access Control) technology
Two Vitesse VSC8601 Gigabit Phy chips
Fully compliant to IEEE 802.3/3u/3ab standards

Serial ATA with RAID

Six Serial ATA ports supported by NVIDIA® MCP55PXE
    - SATA speed up to 3Gb/s
    - RAID 0, RAID 1, RAID 0+1 and RAID 5
Two Serial ATA ports supported by Silicon Image SiI 3132
    - SATA speed up to 3Gb/s
    - RAID 0, RAID 1 and RAID 0+1

IDE

One IDE connector allows connecting up to two UltraDMA 133Mbps hard drives

IEEE 1394

VIA VT6307
Supports two 100/200/400 Mb/sec ports

Rear Panel I/O Ports

1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
Karajan audio module (6 audio jacks)
1 IEEE 1394 port
2 RJ45 LAN ports
6 USB 2.0/1.1 ports

I/O Connectors

2 connectors for 4 additional external USB 2.0/1.1 ports
1 connector for 1 external IEEE 1394 port
1 connector for 1 external serial port
1 connector for the Karajan audio module
1 front audio connector for external line-out and mic-in jacks
  (on the Karajan audio module)
1 CD-in internal audio connector (on the Karajan audio module)
1 S/PDIF connector for optical cable connection
1 IrDA connector
1 CIR connector
8 Serial ATA connectors
1 IDE connector
1 floppy connector
1 24-pin ATX power connector
1 8-pin ATX 12V power connector
1 4-pin 5V/12V power connector (FDD type)
1 front panel connector
5 fan connectors
1 Debug LED
EZ touch switches (power switch and reset switch)

Power Management

ACPI and OS Directed Power Management
ACPI STR (Suspend to RAM) function
Wake-On-PS/2 Keyboard/Mouse
Wake-On-LAN
RTC timer to power-on the system
AC power failure recovery

Hardware Monitor

Monitors CPU/system/chipset temperature
Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages
Monitors the speed of the cooling fans
CPU Overheat Protection function monitors CPU temperature
    during system boot-up

PCB

ATX form factor
24cm (9.45") x 30.5cm (12")

Links of InterestEdit

PicturesEdit

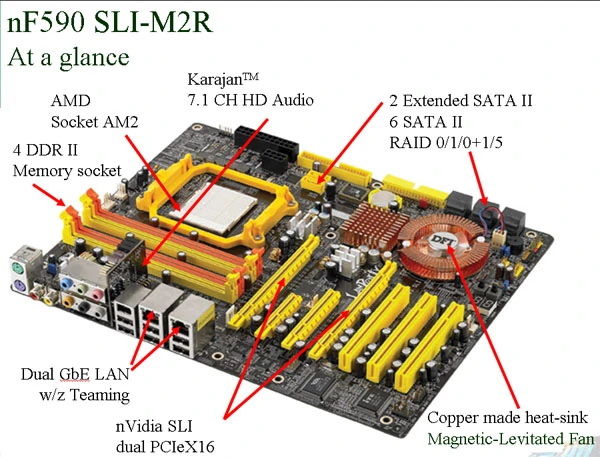

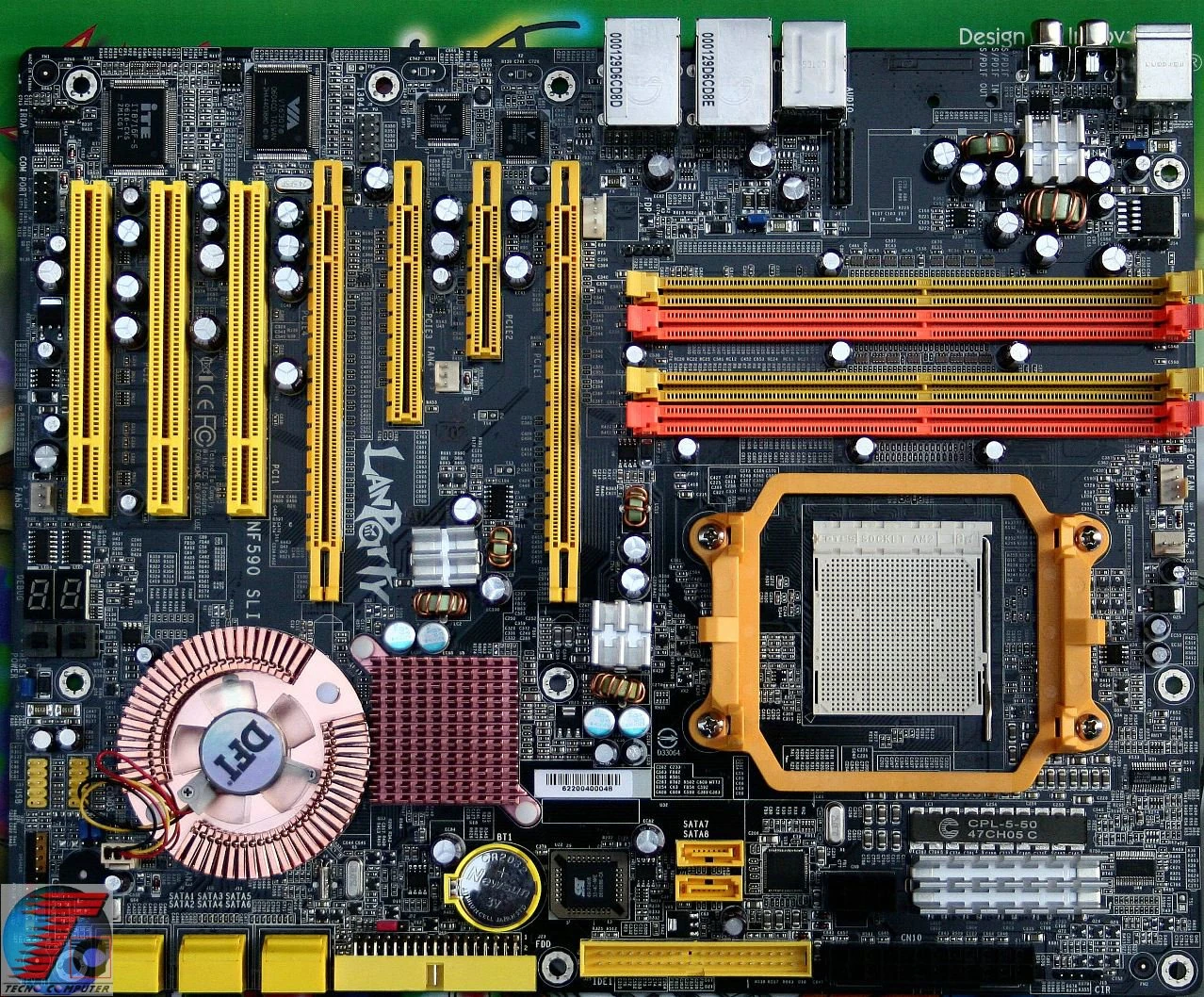

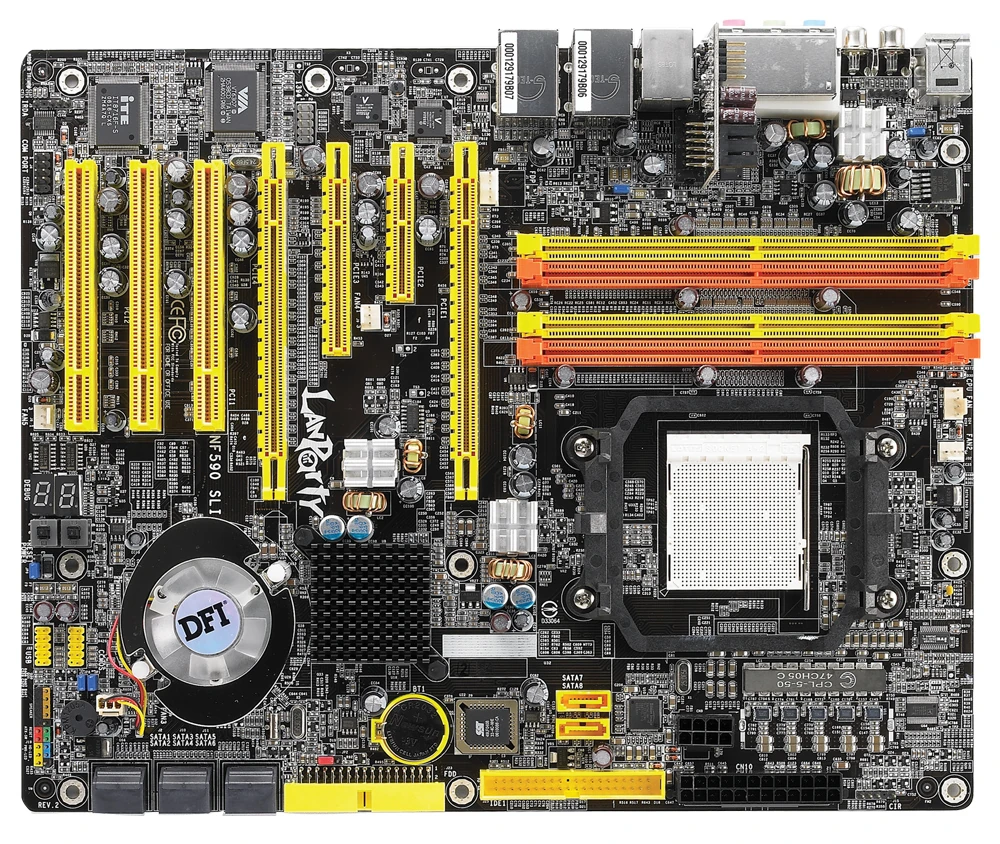

DFI LANPARTY UT NF590 SLI-M2R-G 1000 DFI LANPARTY UT NF590 SLI-M2R-G L DFI LANPARTY UT NF590 SLI-M2R-G overview

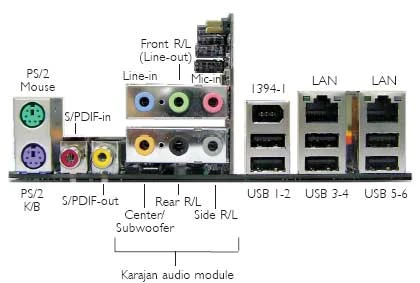

DFI LANPARTY UT NF590 SLI-M2R-G back DFI LANPARTY UT NF590 SLI-M2R-G box
