Airlink AR430W

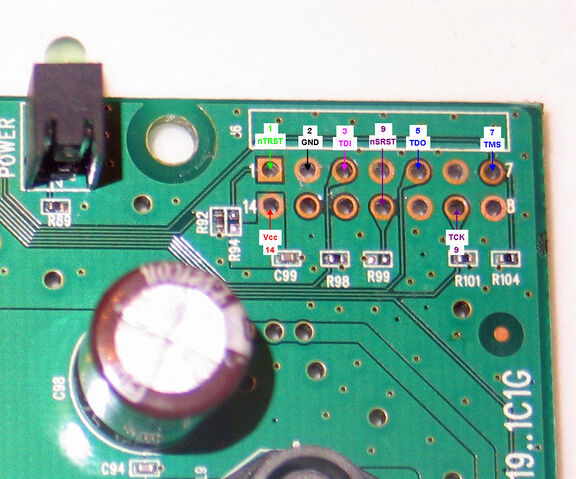

The router follows the MIPS 2.6 EJTAG Specification and has the same PIN information. But on the board the PINS are layed out as
1 2 3 4 5 6 7
14 13 12 11 10 9 8
1 - nTRST
3 - TDI
5 - TDO
7 - TMS
9 - TCK
2, 4, 6, 8, 10 - GND [you only need one GND for JTAG]
You dont need the following pins
11 - nSRST
14 - VCC
12, 13 - N/C
Airlink AP431W
Same as DWL-2100/2200 - See below
Asus RT-N16
Asus WL500g Deluxe
Belkin F5D7230 v1000
To flash use latest wrt54g v4.8, with these parameters: /fc:29 /nocwd /nobreak /noreset
watch out for RA11 (under the minipci)
Belkin_F5D7231_v1212
Buffalo WBR-G54
jtag is pins 1-12 (normal jtag pinout: 3: TDI, 5: TDO, 7: TMS, 9: TCK)
| |mini-pci card
| |_______________
| 2 12 JP1
| o o o o o o |o o|
| o o o o o o |o o|
| 1 11 JP2
Buffalo WLA-G54
siehe
[Buffalo WBR-G54]
Buffalo WLA-G54C
Buffalo WVR-G54-NF
Dell Truemobile 2300 v1
DLink DWL2100/2200
(Also Airlink AP321W)
Pin 1 to pin 14
Pin 3 TDI
Pin 5 TDO
Pin 7 TMS
Pin 9 TCK
Pin 6 Grd
Standard v2.6 EJTAG connector:
Fonera 2200A
The board:
Standard v2.6 EJTAG connector:
Linksys WRT300n v2
Linksys WRT54G v2
Motorola WE800G v1
Motorola WR850G v1
Parallel port - TJTAG 3.0.2 - /cable:wiggler
To get the Universal JTAG board, read this forum thread
Philips SNB6500 (v1)
Board before MOD:
Preparation: 1st step
Preparation: 1st step
First group of pads:
Wires connected:
Wires flow:
Hidden connections:
Second group of pads:
Wires connected:
Final look:
Siemens SE505 v1
Siemens SE505 v2
You will find round Labels on the flash chip with 01, 02, 03
Nice German HowTo: JTAG for SE505 v2
I updated the jtagspi with a 8Meg winbond flash and added information if you have to fix the code to match your JTAG hardware
jtagspi.tgz with my modifications
