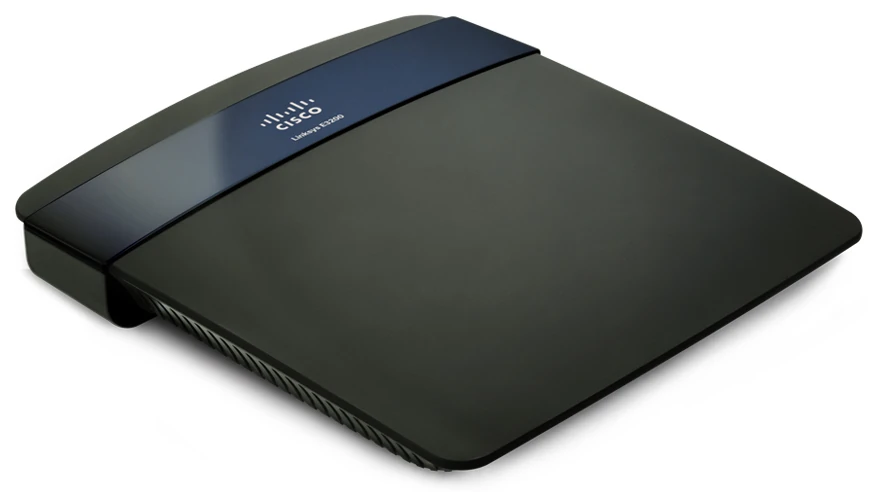

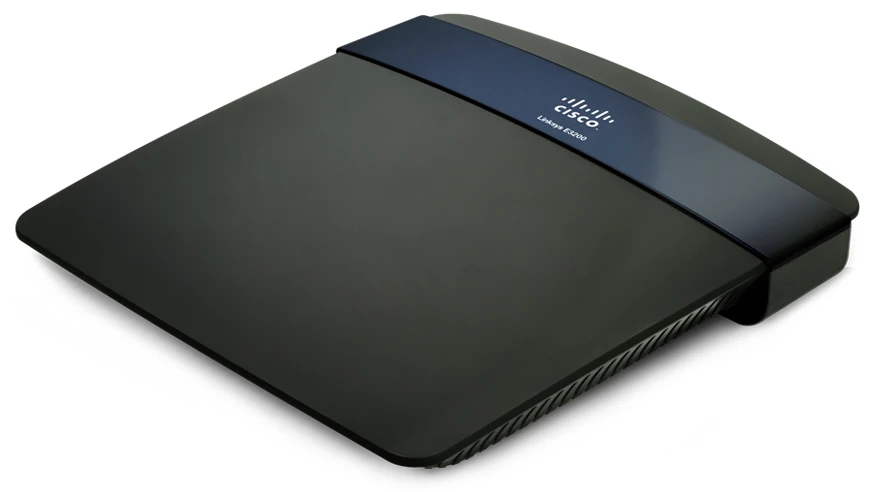

Linksys E3200 v1.0
Talk0
1,179pages on
this wiki
this wiki
Your here: Home / Network / Hardware Specific / Cisco-Linksys / E3200 v1.0
 |
This article is a stub. Please help InfoDepot Wiki by expanding it, adding pictures, and improving existing text.
|
| Linksys E3200 v1.0 | |
|---|---|
 Wireless Dual Band N Router | |
|
Homepage | |
|
Wikipedia | |
|
WikiDevi | |
|
dd-wrt | |
|
OpenWRT |
Status Unknown |
|
Tomato |
Status Unknown |
|
TomatoUSB | |
|
Gargoyle |
Status Unknown |
Contents |
NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.
Specs
Edit
This section is in need of cleanup!
Platform

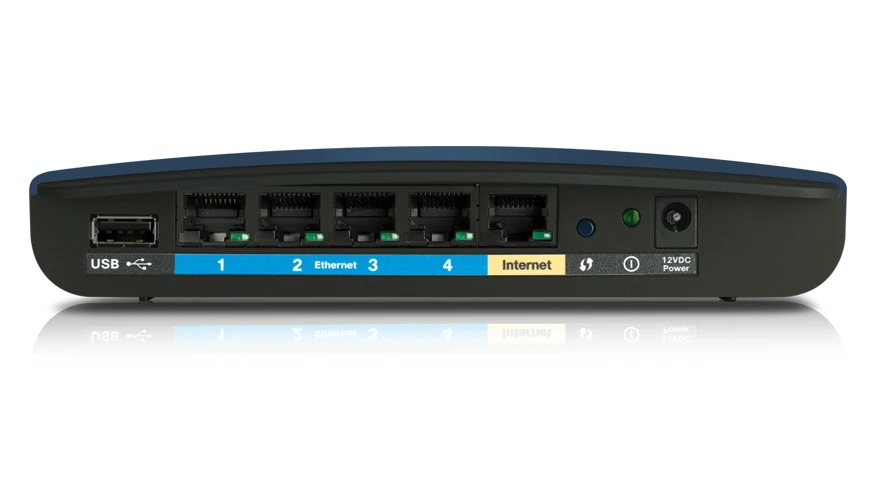

Serial Num. = 10B10 FCC ID = Q87-E3200 CPU Type = Broadcom BCM47186 MIPS Rev = ? CPU Speed = 500MHz Bus = ? Flash Type = Serial Flash Chip = Winbond 25Q128BUFG Flash Size = 16MB Max Firmware Size = ? RAM Size = 64MB RAM Chip = EtronTech EM6AB160TSC-5G 32M x 16 bit nvram Size = 60kb Switch = Broadcom BCM53125SKMMLG Port-based vlan = ? 802.1q vlan = ? Ethernet Port Count = 1-10/100/1000-WAN 4-10/100/1000-LAN Wired Standard = IEEE 802.3/3u/3ab boot_wait = ? bootloader = ? Flash Card Socket/Type = No SD/MMC Mod Support = No MiniPCI slots = No PoE = No Power = ? Color of LEDs = ? Size = ? USB = Yes Serial Port = ? JTAG Port = ? Supported by TJTAG/Version = ? Supported by dd-wrt as of = WIP dd-wrt K2.4 Support = ? dd-wrt K2.6 Support = ? Special Features = Simultaneous, Dual Radio
Radio
Wireless Radio = Broadcom BCM47186 (SoC) WLAN DSP processor = ? Antenna Connector Type = 3 Internal Wireless Standard = IEEE 802.11b/g/n WiFi Operating Frequency = 2.4GHz 802.11n = up to 300 + 300 Mbps 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b = 1, 2, 5.5, 11Mbps Radio cor_rev = ? Radio Capabilities = ?
Radio
Wireless Radio = Broadcom BCM43236 WLAN DSP processor = ? Antenna Connector Type = 3 Internal Wireless Standard = IEEE 802.11a/n WiFi Operating Frequency = 5GHz 802.11n = up to 300 + 300 Mbps 802.11a = 6, 9, 12, 18, 24, 36, 48, 54Mbps Radio cor_rev = ? Radio Capabilities = ?
Links of InterestEdit
FlashingEdit
This section is in need of cleanup!
UpgradingEdit
This section is in need of cleanup!
RevertingEdit
This section is in need of cleanup!
JTAG/Serial InfoEdit
JTAGEdit
JTAG PinoutsEdit
This section is in need of cleanup!
JTAG RecoveryEdit
This section is in need JTAG Recovery Instructions!
SerialEdit
Serial PinoutsEdit
This section is in need of cleanup!
Hyper terminal Setup in Windows XPEdit
In Windows XP, Click Start Button - All Programs - Accessories -
Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
Bits per second = 115200
Data Bits = 8
Parity = none
Stop bits = 1
Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
don't have to enter the settings again.
Putty Setup in Windows XPEdit
After installing putty, run it Serial line = The COM port your using for serial (ie. COM3) Speed = 115200 Click on Serial under Connection Serial line to connect to = same as above (Serial line) Speed (baud) = 115200 Data bits = 8 Stop bits = 1 Parity = None Flow control = None Click Session Enter a name for your connection under saved sessions Click Save Click Open
Serial RecoveryEdit
This section is in need of Serial Recovery Instructions!
USB InfoEdit
This section is in need of cleanup!
vlan InfoEdit
This section is in need of cleanup!
PicturesEdit
FCC PicturesEdit
This section is in need of cleanup!
NotesEdit
Hardware ModificationEdit
