Linksys EG008W v1.0

1,124pages on
this wiki
Add New Page
Talk0 Share

Your here: Home / Network / Hardware Specific / Cisco-Linksys / EG008W


Linksys EG008W

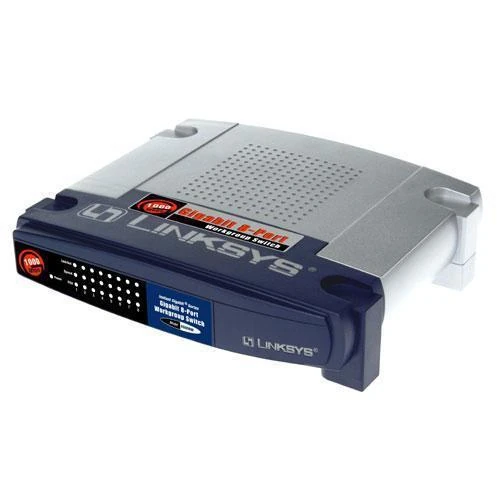

Linksys EG008Wa
Gigabit Workgroup Switch

Homepage

?

Wikipedia

?


Linksys

SpecsEdit

Fixme This section is in need of cleanup!

Platform

Serial Num. = ?
FCC ID = ?
CPU Type = ?
MIPS Rev = ?
CPU Speed = ?
Bus = ?
Flash Type = ?
Flash Chip = ?
Flash Size = ?
Max Firmware Size = ?
RAM Size = ?
RAM Chip = ?
nvram Size = ?
Switch = ?
Port-based vlan = No
802.1q vlan = No
Ethernet Port Count = 8 RJ-45 10/100/1000 Mbps ports,
                      auto-sensing half/full duplex
                      All ports suppport auto MDI/MDI-X cable detection
Wired Standard = IEEE 802.3, 802.3u, 802.3x, 802.3ab
boot_wait = No
bootloader = No
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = No
PoE = No
Power = 12V/1A
Color of LEDs = Power, Link/Act, Speed, FDX
Size = ?
USB = No
Serial Port = ?
JTAG Port = ?
Supported by TJTAG/Version = ?
Special Features = Category 5e Recommended

Links of InterestEdit

IntroductionEdit

Many new computers these days include a gigabit capable network adapter, however most small networks are only 100Mb because of the high cost for a gigabit switch. Linksys has broken that barrier with both an 8 and 5 port gigabit switch that comes in well under $200! I'm not just talking about a single gigabit port either, every port on these switches are 10/100/1000 Mb capable! Today we are going to look at the 8 port version, the EG008W.

It is worth mentioning a couple things that aren't really listed in the specs. First, there is a fan inside, so noise can be an issue. Second, this switch does NOT support jumbo frames, so the connection will tend to get saturated well before full gigabit speeds are reached.


PicturesEdit

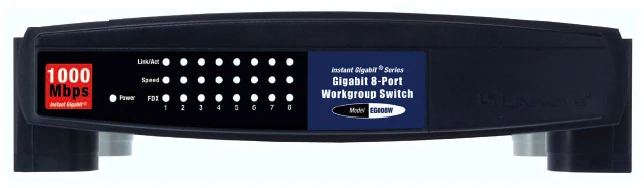

Linksys EG008Wb Linksys EG008Wc

FCC PicturesEdit

Fixme This section is in need of cleanup!

NotesEdit
