Linksys WRT120N v1.0
Linksys WRT120N a

Homepage

WRT120N

Wikipedia

?

dd-wrt

Not Possible

OpenWRT

Not Supported

Tomato

Not Supported

TomatoUSB

Not Supported

Gargoyle

?

NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

SpecsEdit

Fixme This section is in need of cleanup!

Platform

Serial Num. = ?
FCC ID = Q87-WRT120N
CPU Type = Atheros
MIPS Rev = ?
CPU Speed = ?
Bus = ?
Flash Type = ?
Flash Chip = ?
Flash Size = 2MB
Max Firmware Size = ?
RAM Size = ?
RAM Chip = ?
nvram Size = ?
Switch = ?
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-10/100-WAN 4-10/100-LAN
Wired Standard = IEEE 802.3/3u
boot_wait = ?
bootloader = ?
Flash Card Socket/Type = none
SD/MMC Mod Support = ?
MiniPCI slots = ?
PoE = ?
Power = 12VDC @ 1A
Color of LEDs = blue
Size = 7.99" x 1.38" x 6.3" (203mm x 35mm x 160mm)
USB = ?
Serial Port = JP3 - 10 pin header (2 rows of 5 pins @ .1" spacing)
JTAG Port = JP8 - 14 pin header (2 rows of 7 pins @ .1" spacing)
Supported by TJTAG/Version = ?
Special Features = ?

Radio

Wireless Radio = ?
WLAN DSP processor = ?
Antenna Connector Type = none - soldered
Wireless Standard = ??? IEEE 802.11a/b/g/n
WiFi Operating Frequency = ?
 802.11n Draft 2 = up to 150Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

Links of InterestEdit

FlashingEdit

Fixme This section is in need of cleanup!

UpgradingEdit

Fixme This section is in need of cleanup!

RevertingEdit

Fixme This section is in need of cleanup!

JTAG/Serial InfoEdit

JTAGEdit

JTAG PinoutsEdit
Fixme This section is in need of cleanup!
JTAG RecoveryEdit
Fixme This section is in need JTAG Recovery Instructions!

SerialEdit

Serial PinoutsEdit
Fixme This section is in need of cleanup!
Hyper terminal Setup in Windows XPEdit
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XPEdit
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial RecoveryEdit
Fixme This section is in need of Serial Recovery Instructions!

vlan InfoEdit

Fixme This section is in need of cleanup!

PicturesEdit

Fixme This section is in need of cleanup!

FCC PicturesEdit

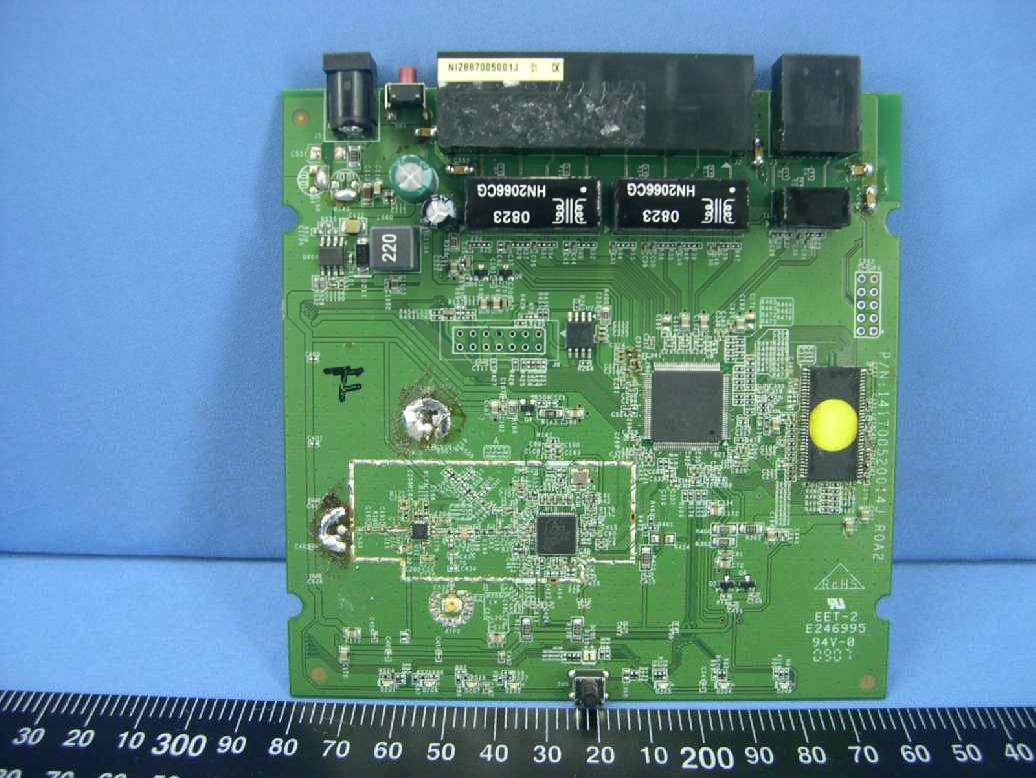

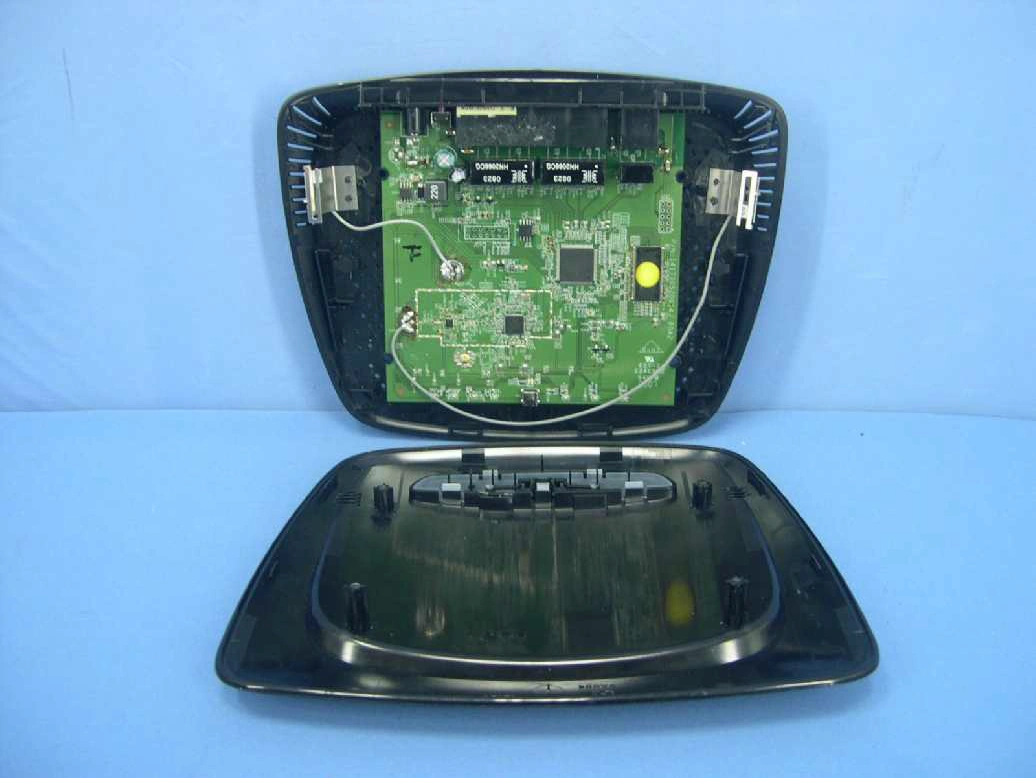

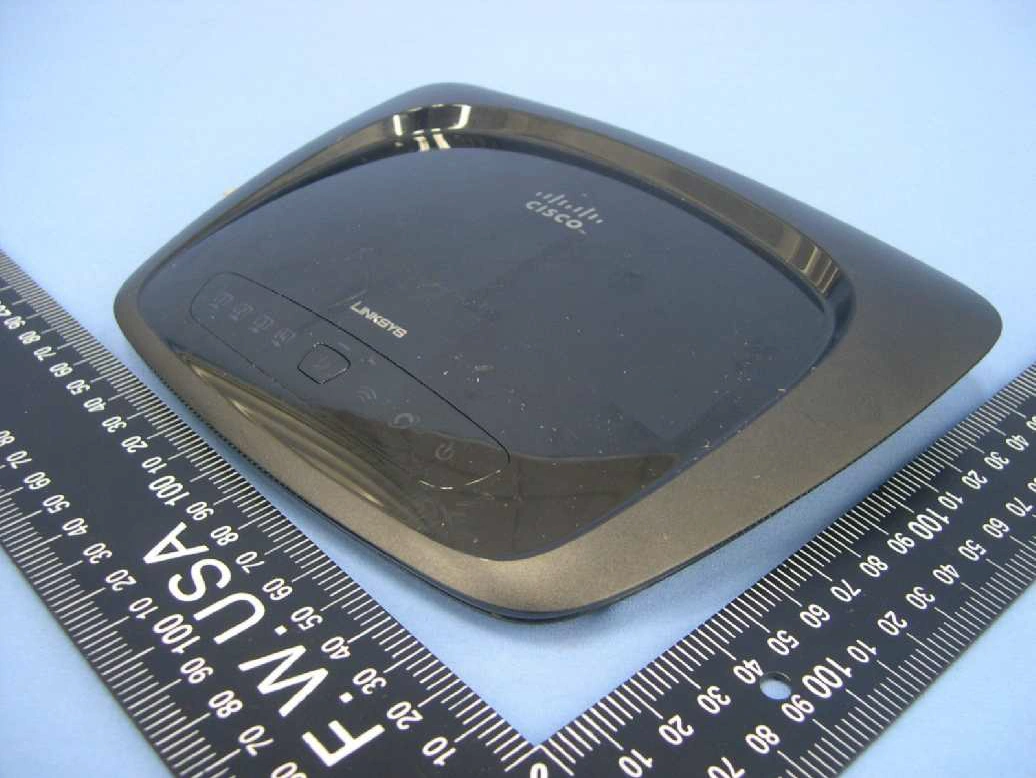

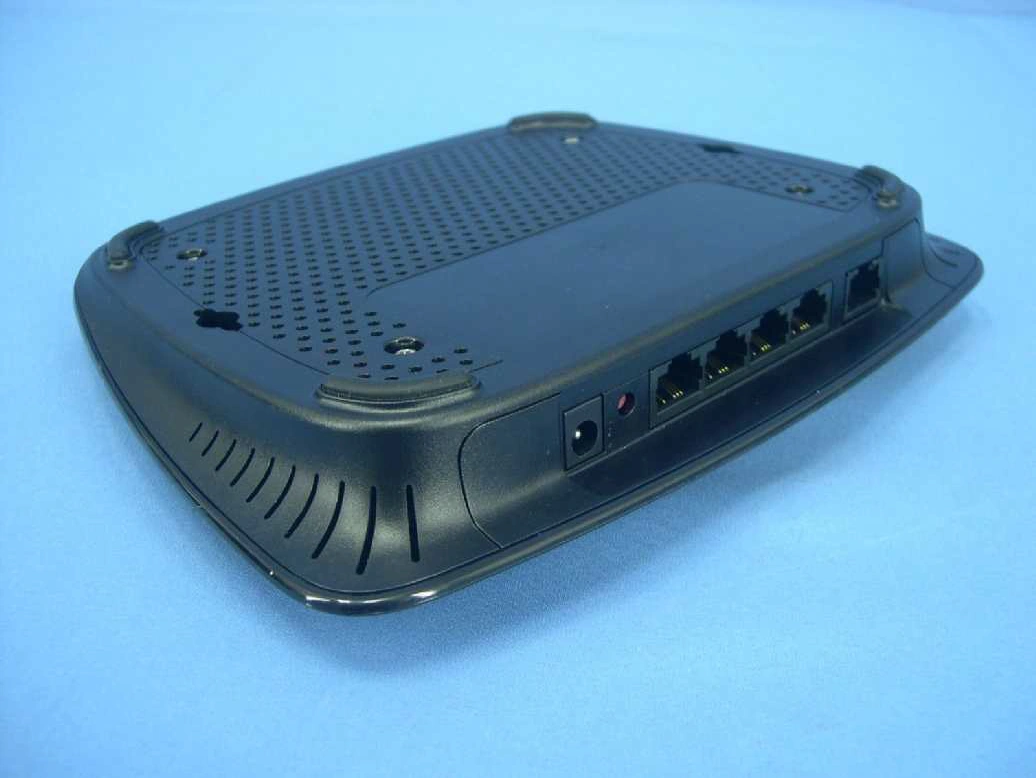

Linksys WRT120N v1.0 FCC a Linksys WRT120N v1.0 FCC b Linksys WRT120N v1.0 FCC c

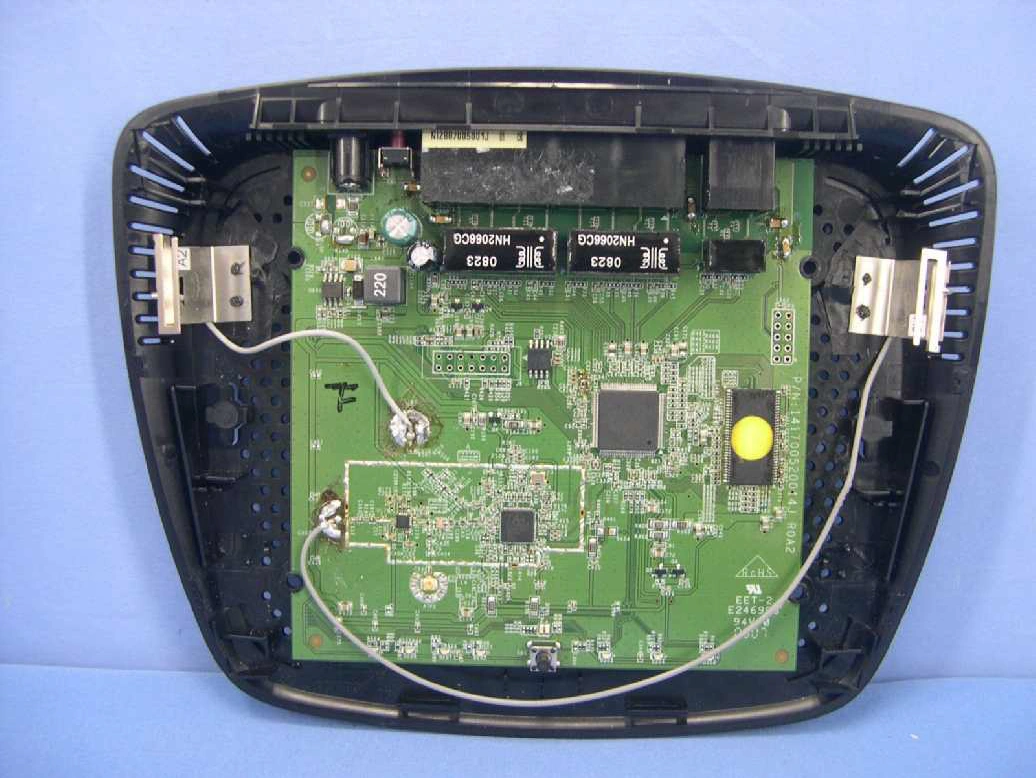

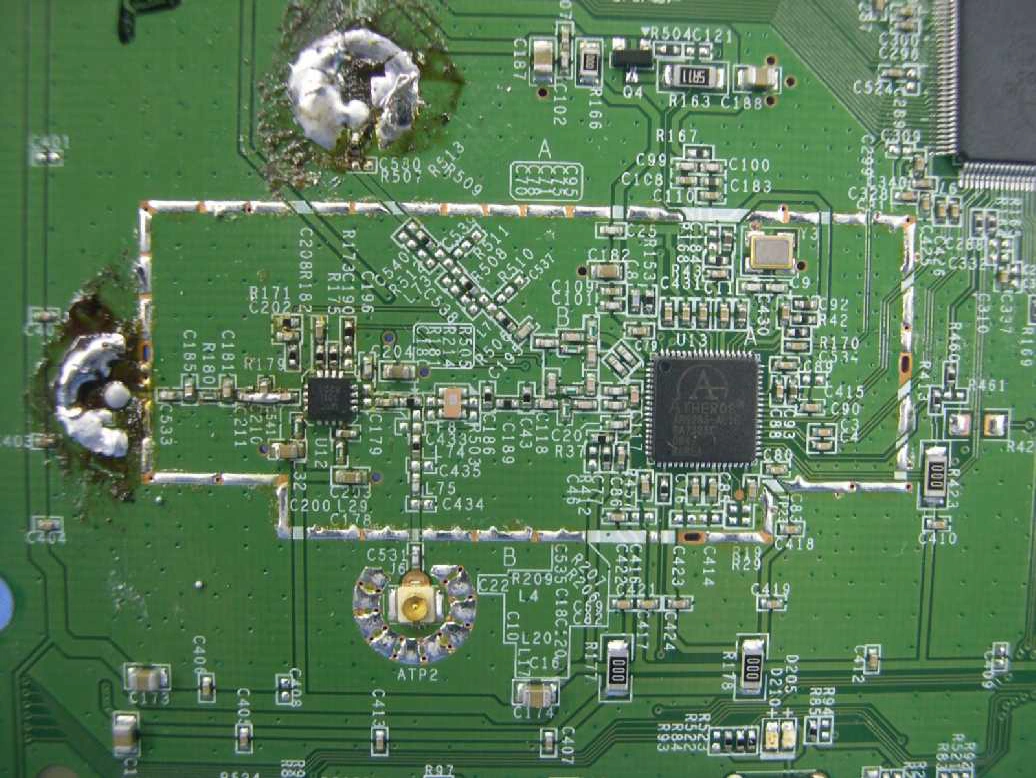

Linksys WRT120N v1.0 FCC d Linksys WRT120N v1.0 FCC e Linksys WRT120N v1.0 FCC f

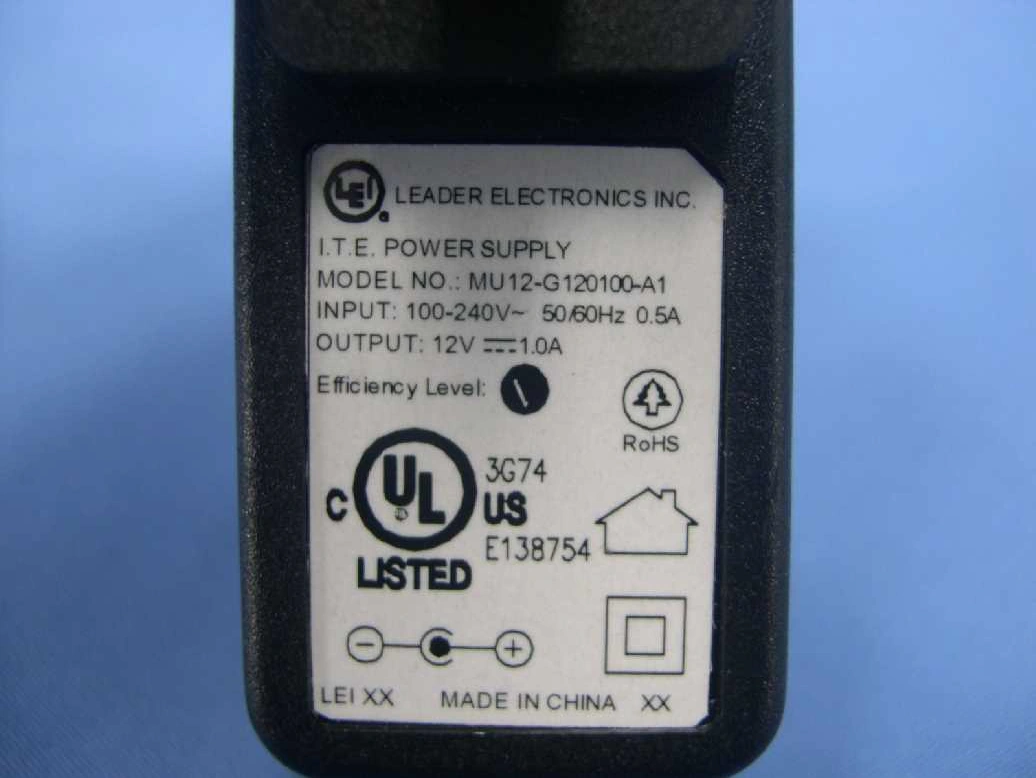

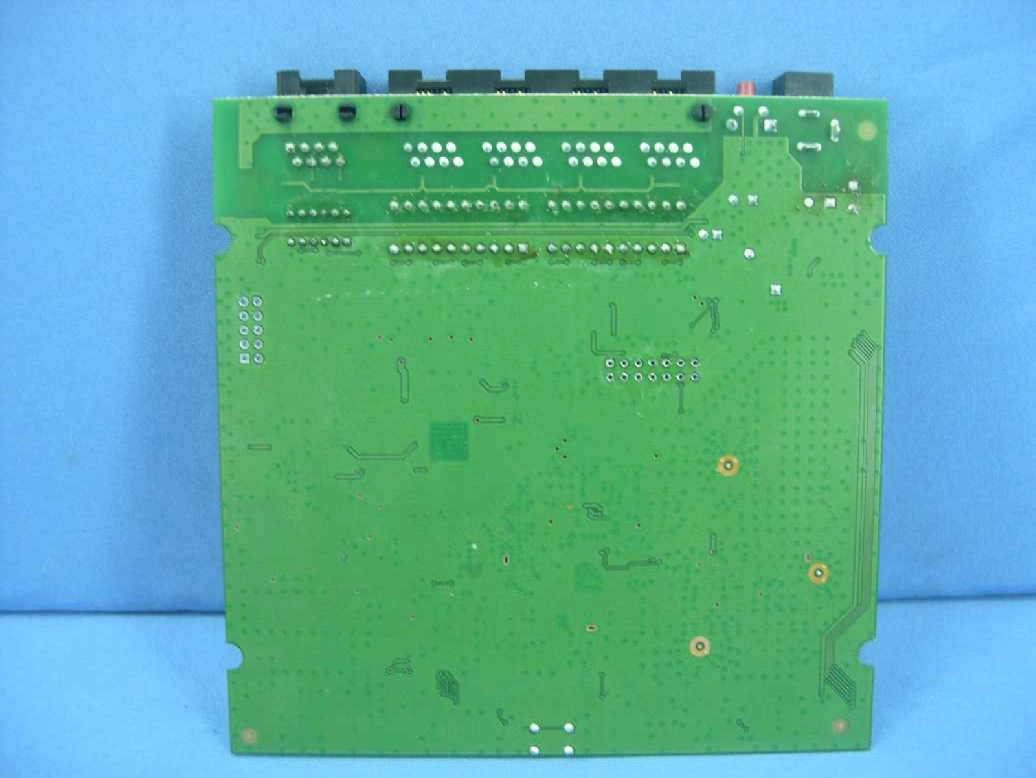

Linksys WRT120N v1.0 FCC g Linksys WRT120N v1.0 FCC h

NotesEdit


Hardware ModificationEdit
