NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

 This section is in need of cleanup!

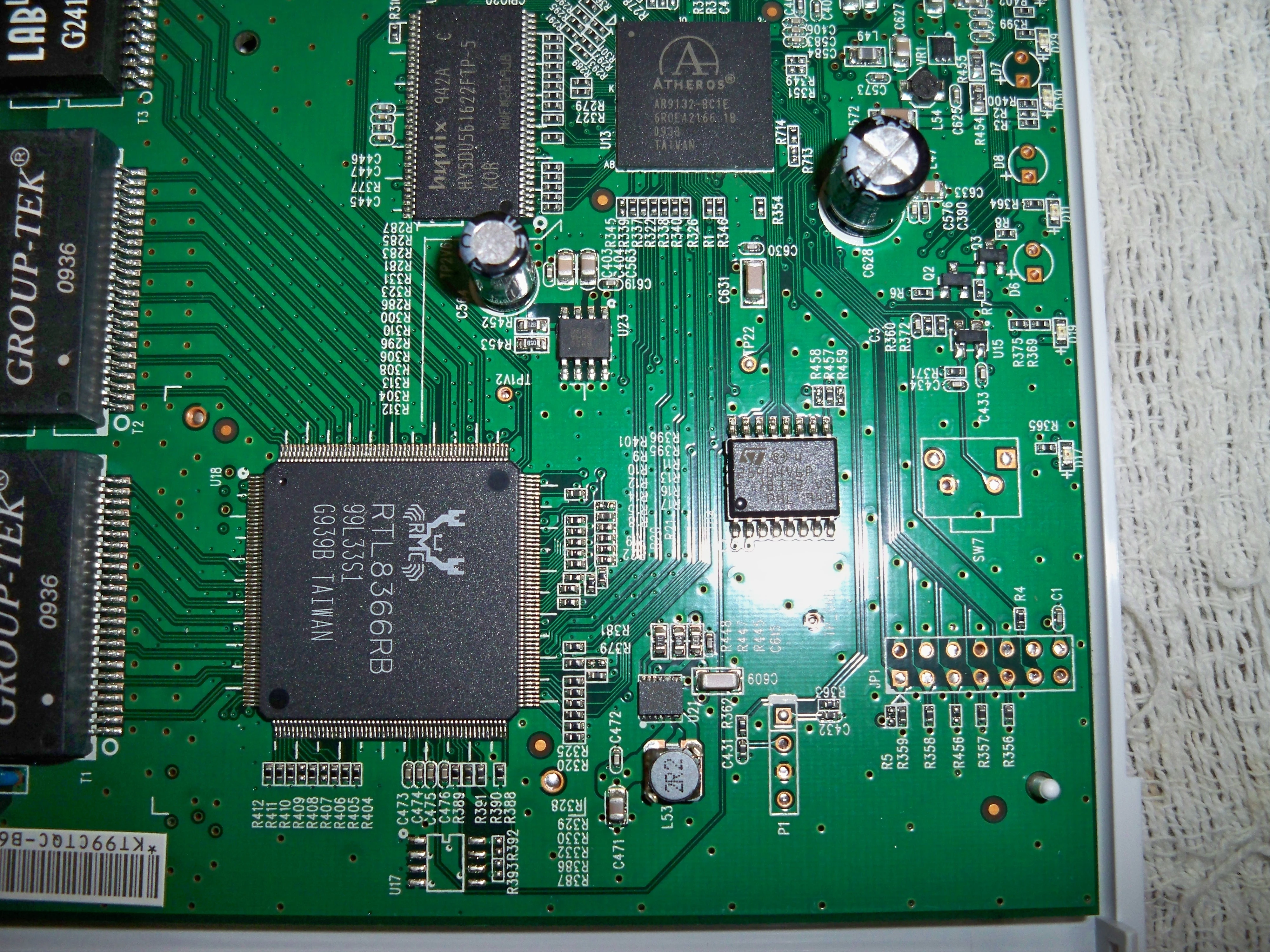

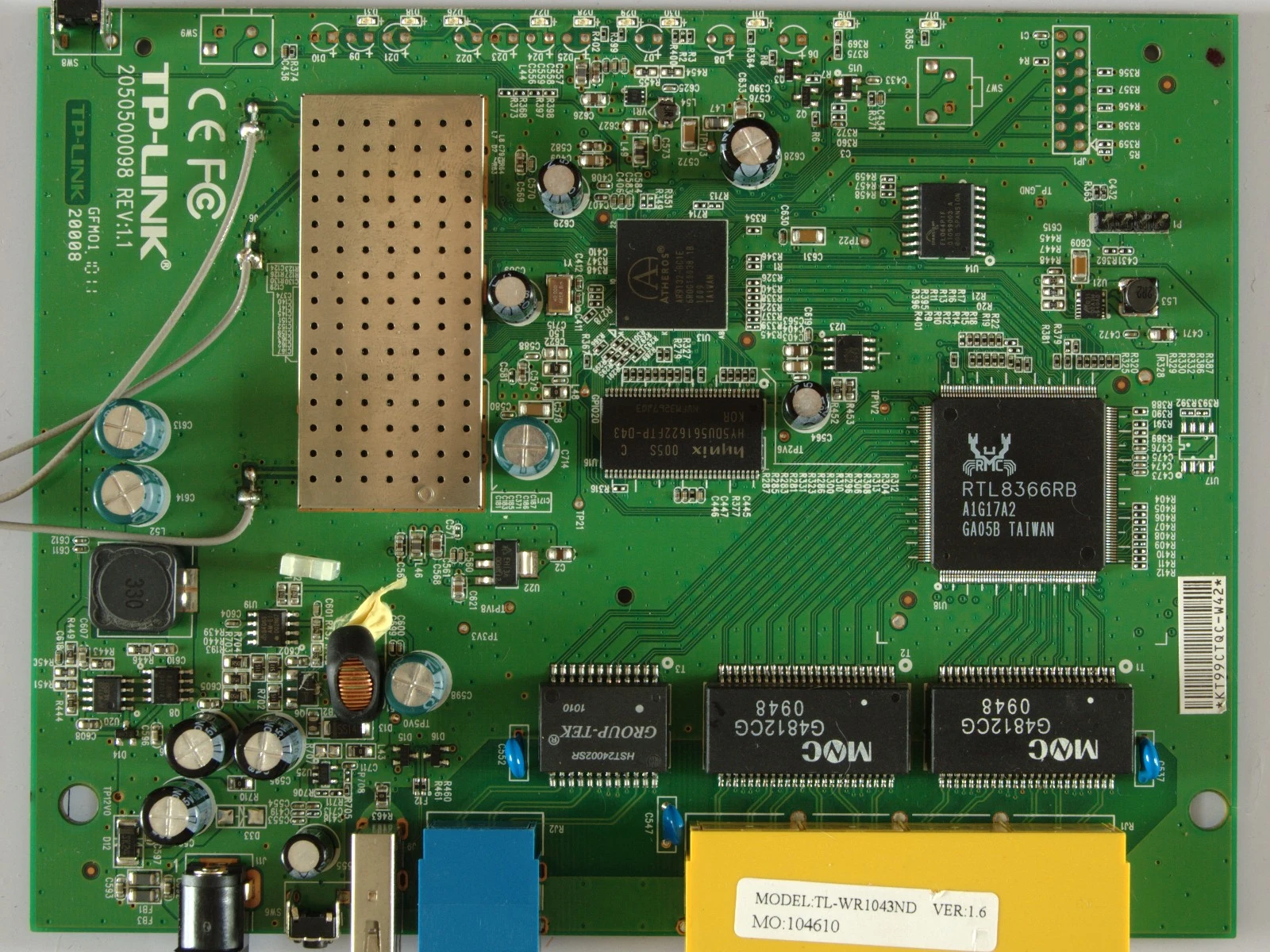

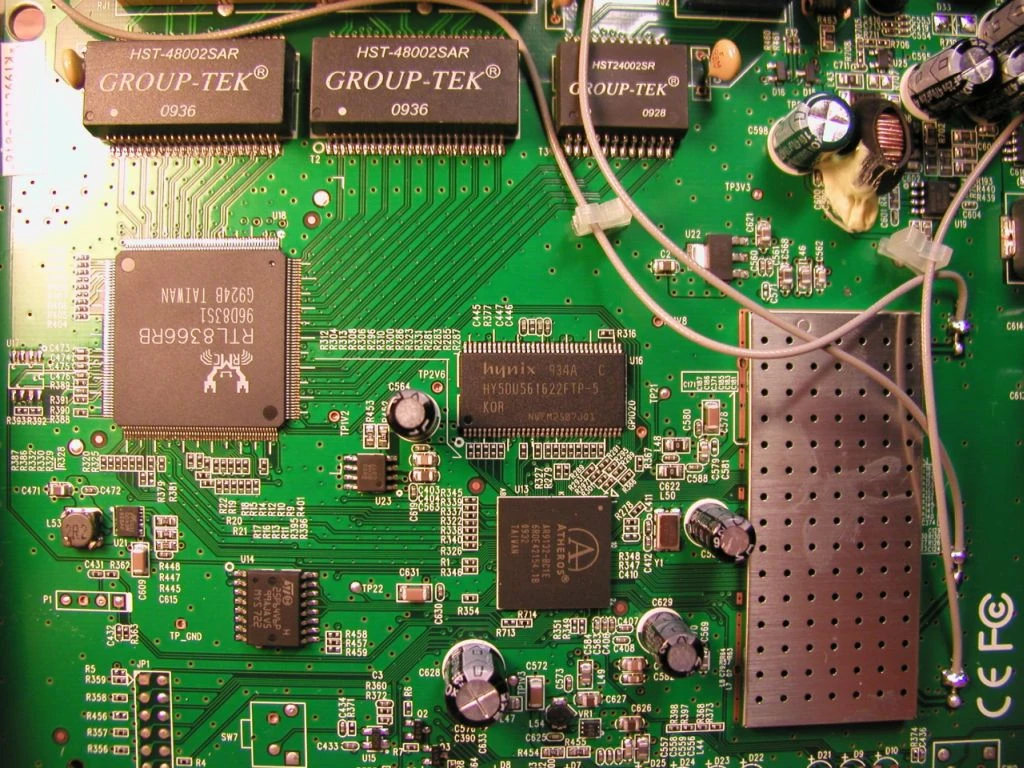

Platform

Serial Num. = ?
FCC ID = ?
CPU Type = Atheros AR9132-BC1E (AR9132)
MIPS Rev = ?
CPU Speed = 400MHz
Bus = ?
Flash Type = Serial
Flash Chip = 25P64V6P 99AJAV5 MYS722
Flash Size = 8MB
Max Firmware Size = ?
RAM Size = 32MB
RAM Chip = HY5DU561622FTP-D43
Switch = RTL8366RG A1G17A2 GA05B
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-10/100/1000-WAN 4-10/100/1000-LAN
Wired Standard = IEEE 802.3?
boot_wait = ?
bootloader = ?
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = No
PoE = No
Power = 12VDC/1.5A
Color of LEDs = Green
Size = ?
USB = 1 USB 2.0 Port
Serial Port = Yes
JTAG Port = Yes
Supported by TJTAG/Version = ?
Supported by dd-wrt as of = WR1043ND v.24 SP2 - build 13972 - 20100223
dd-wrt K2.4 Support = ?
dd-wrt K2.6 Support = ?
dd-wrt Notes = N clients connect only at G tx/rx rate,
               everything else working
Special Features = ?

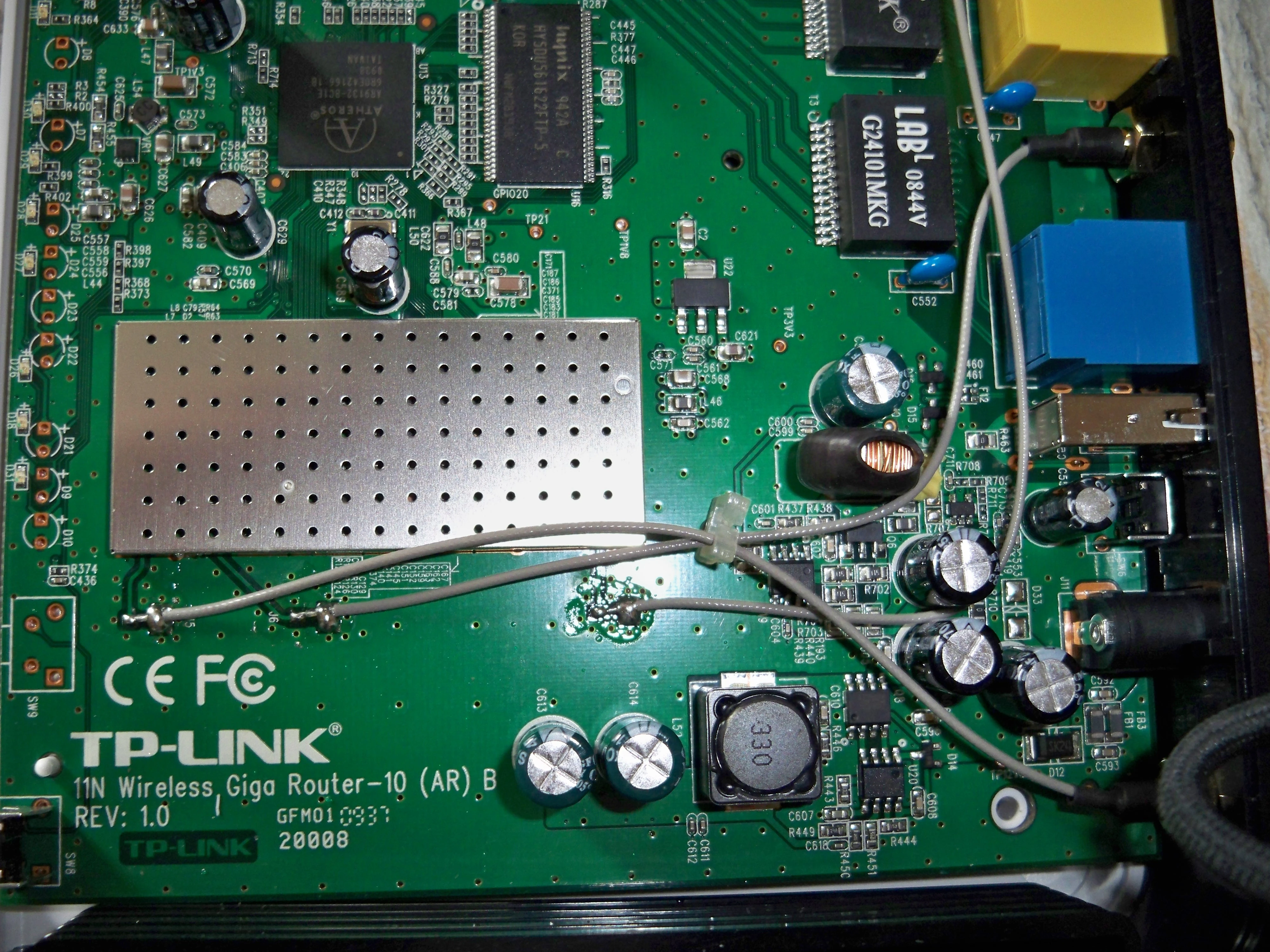

Radio (ath0)

Wireless Radio = Atheros AR9103 3x3 MIMO
WLAN DSP processor = ?
Antenna Connector Type = 3dBi Detachable RP-SMA Omni Directional Antenna X 3
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = 2.4~2.4835GHz
 802.11n = up to 300Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

http://www.dd-wrt.com/phpBB2/viewtopic.php?t=62217
https://forum.openwrt.org/viewtopic.php?pid=98147

 This section is in need of cleanup!

 This section is in need of cleanup!

 This section is in need of cleanup!

JTAG PinoutsEdit

 This section is in need of cleanup!

JTAG RecoveryEdit

 This section is in need JTAG Recovery Instructions!

Serial PinoutsEdit

 This section is in need of cleanup!

Hyper terminal Setup in Windows XPEdit

In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.

Putty Setup in Windows XPEdit

After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open

Serial RecoveryEdit

 This section is in need of Serial Recovery Instructions!
