TP-Link TL-WR941ND v3.0
TP-Link TL-WR941ND a

Homepage

TL-WR941ND

Wikipedia

?

dd-wrt

?

OpenWRT

TL-WR941ND

Tomato

?

TomatoUSB

Not Supported

Gargoyle

See OpenWRT

NOTE: During configuration or flashing a device, the only that should be hooked to the device is the computer and power.

SpecsEdit

Fixme This section is in need of cleanup!

Platform

Serial Num. = ?
FCC ID = TE7WR941NX
CPU Type = Atheros AR9132
MIPS Rev = ?
CPU Speed = 400MHz
Bus = ?
Flash Type = ?
Flash Chip = ?
Flash Size = 4MB
Max Firmware Size = ?
RAM Size = 32MB
RAM Chip = ?
nvram Size = ?
Switch = Atheros AR9132 (SoC)
Port-based vlan = ?
802.1q vlan = ?
Ethernet Port Count = 1-WAN 4-LAN
Wired Standard = IEEE 802.3?
boot_wait = ?
bootloader = uboot
Flash Card Socket/Type = No
SD/MMC Mod Support = No
MiniPCI slots = No
PoE = No
Power = 9V/.85A
Color of LEDs = ?
Size = ?
USB = Mod to add
Serial Port = Yes
JTAG Port = ?
Supported by TJTAG/Version = ?
Supported by dd-wrt as of = v.24 sp2 - build 14581 - 20100609
dd-wrt K2.4 Support = ?
dd-wrt K2.6 Support = ?
Special Features = use v3.0 build for flashing v3.5

Radio

Wireless Radio = Atheros AR9103 3x3 MIMO @ 20dBm
WLAN DSP processor = ?
Antenna Connector Type = ?
Wireless Standard = IEEE 802.11b/g/n
WiFi Operating Frequency = ?
 802.11n = up to 300Mbps
 802.11g = 6, 9, 12, 18, 24, 36, 48, 54Mbps
 802.11b = 1, 2, 5.5, 11Mbps
Radio cor_rev = ?
Radio Capabilities = ?

Links of InterestEdit

FlashingEdit

Fixme This section is in need of cleanup!

UpgradingEdit

Fixme This section is in need of cleanup!

RevertingEdit

Fixme This section is in need of cleanup!

Revert files

JTAG/Serial InfoEdit

JTAGEdit

JTAG PinoutsEdit
Fixme This section is in need of cleanup!
JTAG RecoveryEdit
Fixme This section is in need JTAG Recovery Instructions!

SerialEdit

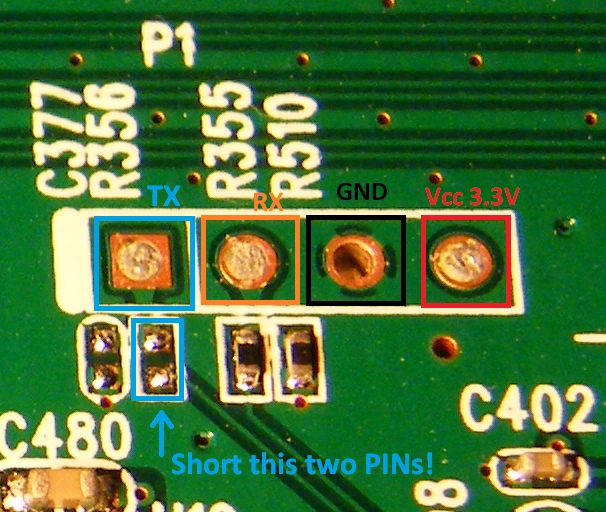

Serial PinoutsEdit
 RX  1 o
 TX  2 o
GND  3 o
VCC  4 o (3.3V)
Hyper terminal Setup in Windows XPEdit
In Windows XP, Click Start Button - All Programs - Accessories -
   Communication - HyperTerminal
Enter a name for the connection, Click ok
Choose com port you adapter is plugged into, Click ok
Set:
 Bits per second = 115200
 Data Bits = 8
 Parity = none
 Stop bits = 1
 Flow control = none
Click ok
Click File - Save As, and select a place to save it to so you
             don't have to enter the settings again.
Putty Setup in Windows XPEdit
After installing putty, run it
 Serial line = The COM port your using for serial (ie. COM3)
 Speed = 115200
Click on Serial under Connection
 Serial line to connect to = same as above (Serial line)
 Speed (baud) = 115200
 Data bits = 8
 Stop bits = 1
 Parity = None
 Flow control = None
Click Session
 Enter a name for your connection under saved sessions
Click Save
Click Open
Serial RecoveryEdit
Fixme This section is in need of Serial Recovery Instructions!

USB InfoEdit

Fixme This section is in need of cleanup!

vlan InfoEdit

Fixme This section is in need of cleanup!

PicturesEdit

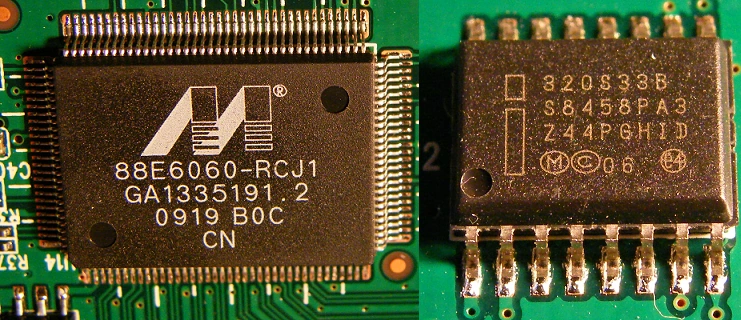

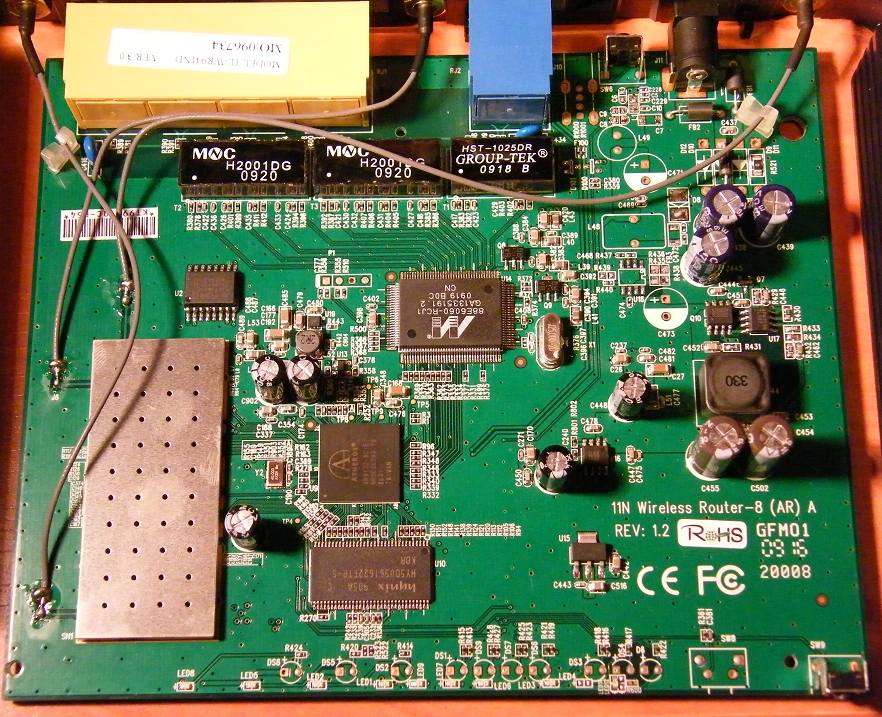

TP-Link TL-WR941ND v3.0 a TP-Link TL-WR941ND v3.0 b TP-Link TL-WR941ND v3.0 c

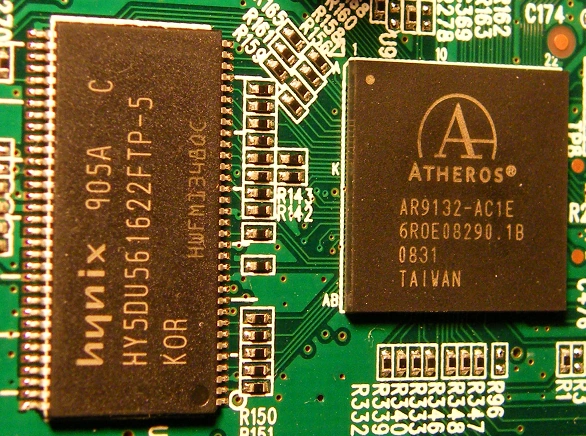

TP-Link TL-WR941ND v3.0 d TP-Link TL-WR941ND v3.0 e TP-Link TL-WR941ND v3.0 f

FCC PicturesEdit

Fixme This section is in need of cleanup!


NotesEdit

Hardware ModificationEdit
